Company Introduction:---





               Our company is a first enterprise to invent  and producing high technology of "Fiber optics light" products. Company established since1985.

 The  patent  invention products was approved by the united state  patent associations  patent No. 4,559,583  and  also approved by the Japan  patent

department   patent  No.  昭 62-98501 at the same year. Fiber optics use as at  small  products such as base ball cap, jacket, christmas gift, Jewel  boxes,

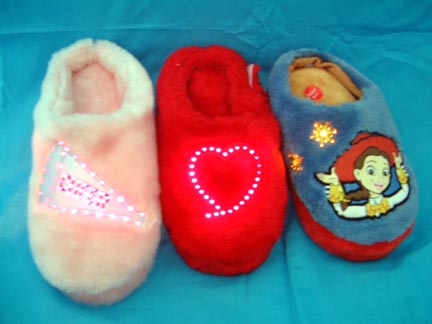

jewel bags, trays,  plush slipper, sport shoes, etc. support  holders stage properties and display use goods, all made of the high technology of "Fiber Optics light" ,

botanical velvets with different  materials. Imported  from  Japan, Taiwan and the joint  venture. There are many varieties types and lines for these products.



           In management, we pursuer efficiency and perfection so as to standardize each item, each process of our products. We have employed  some

experienced arts, experience designer. professionals  products development department to continuously promote high taste & high technology products of

different styles to satisfy the changing market  demands.



                  Our company have launch some exclusive &  patent new products :  Such as (small products) ,ring box, bangle box, electronic toys, golf club logo base

ball caps, sport shoe, ( large products)  outdoor advertising box,  indoor display window, products display etc. Complete with  made in Japan, made by Taiwan advance

high technology of 〃 Fiber optics thread" accompany by music package. This devise would let the receiver full of surprise when opening the gift. We provide different

kind of engage, birthday , Christmas  melody etc. with timer module control option choice. You can purchase from varieties of  our product lines, or place order

by sending mail to us for  personalized goods.



                We put the benefits of customers in first place with our sincerity and cooperation with our customers . Customers satisfaction is the goal  we  pursuer

  forever will  do better with your kind support.





         本公司創立於1985,是首家在港企業最早發明及生產經b各類高科技光纖發光電子製品.並於同年在美國,日本取得專利註冊權,  ( 日本[特許廳內

   特許整理番: 62- 98501).( United State Patent No. 4,559,583). 在電子光纖製品上可以說是首家專業設計公司. 電子光纖發光製品 用途十分廣泛

  例如: 中小型產品可應用在玩具電子芯內,發光,發聲及首飾盒,珠寶袋,托座,皮外衣,哥爾夫球N太陽帽,運動鞋,毛毛拖鞋,襟針等專業用途應用于醫學上

 的有象素光纖內窺鏡, 通訊用的高質量傳訊號光讖等. 大型產品可應用在 大公司廚窗裝篩,包裝及展示公司產品之廣告板,廣告箱, 緊急逃生出路照明箱等

 制作所用材料 均選用來自日本,台灣和大陸合資廠的各種顏色電子光纖產品,種類繁多,製成產品能發出多種彩色耀眼光芒之發光點,另外,可配合各種美妙音樂,

 悅耳動聽,燦爛奪目,任君選擇.

     本公司產品系列多元化.深圳設有廠房.在生產的管理上,我們追求高效益,精益求精的理念,以使每件產品制作規定 ,手工精良,而且工廠更有美術設計員,

  產品開發部,不斷推出新款,高品味和有風格的產品,以符合現今不斷變化的高科技市場需求.只要顧客們提出任何初步概念開發工程部人員會自當為貴公司

  設計樣辦,盡量達到顧客們的要求.

         此外本公司亦為客戶提供專業的店舖形象設計及策劃.窗設計和裝修大型廣告燈箱配合電子光纖等. 本公司一向以客戶利益為首,以誠為本,

  力求同各客戶緊密合作,為您提供實用,精美,高尚又成本低的產品系列客戶的滿意將是我們永遠追求的目標,有您的支持,我們將做得更好.





Company Products Presentation.



    Business Area :----

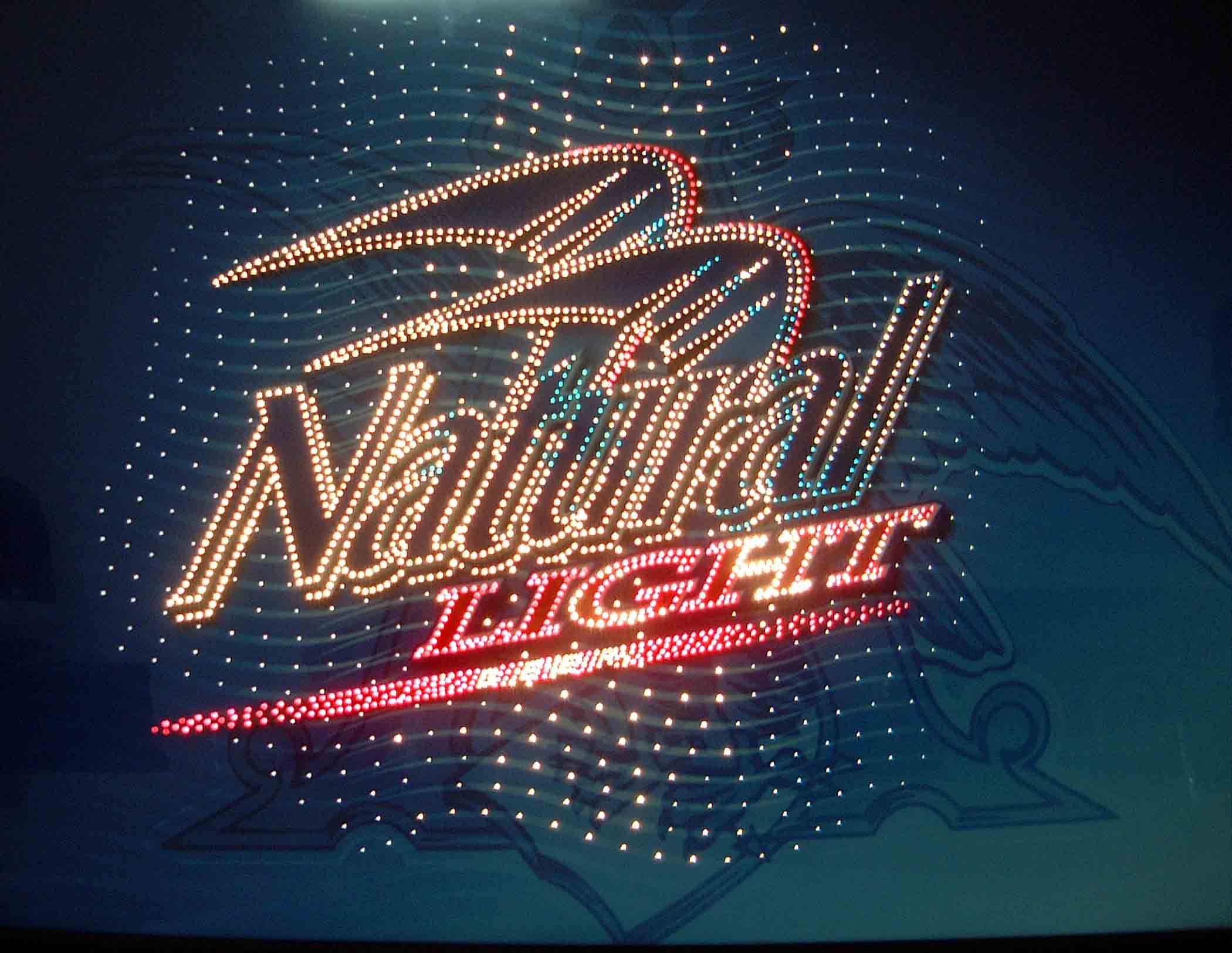

                  FIBER    OPTIC  LIGHT  ADVERTISING   DISPLAY











                 Demonstrate   your  message  with  new  Technology



              SIZE (OUTER) : 51cm(w) x 58 cm (h)                                       SIZE (OUTER) : 30cm(w) x 30cm(h)



           Models In tailor modeler                                                        STANDARD MODEL

           SIZE: In According to customer's requirements                               SIZE (Outer) : 30cm(W) x 30cm(h)

                            (Minimum size : 30 x 30 cm)                                                                    Price : US$50/pc (FOB HONG KONG)

              Price Indication: US$100.00 per square meter (FOB Hong Kong)                               Minimum order quantity: 20 pcs/design

              Minimum Order Quantity : 50 PCS / design.                                                           Design : Can be In according to custome

             Graphic Design: In according to customer's own design.                                                           own design.

              Minimum per order of tailor model

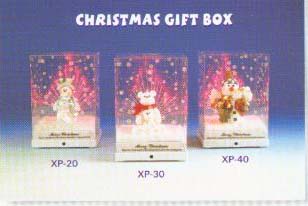

              Reference: Advertising gift box.

               Size: 0.51 x 0.58cm=0.3 sq.meter

              Approval Sample: Available after confirmation of orders.

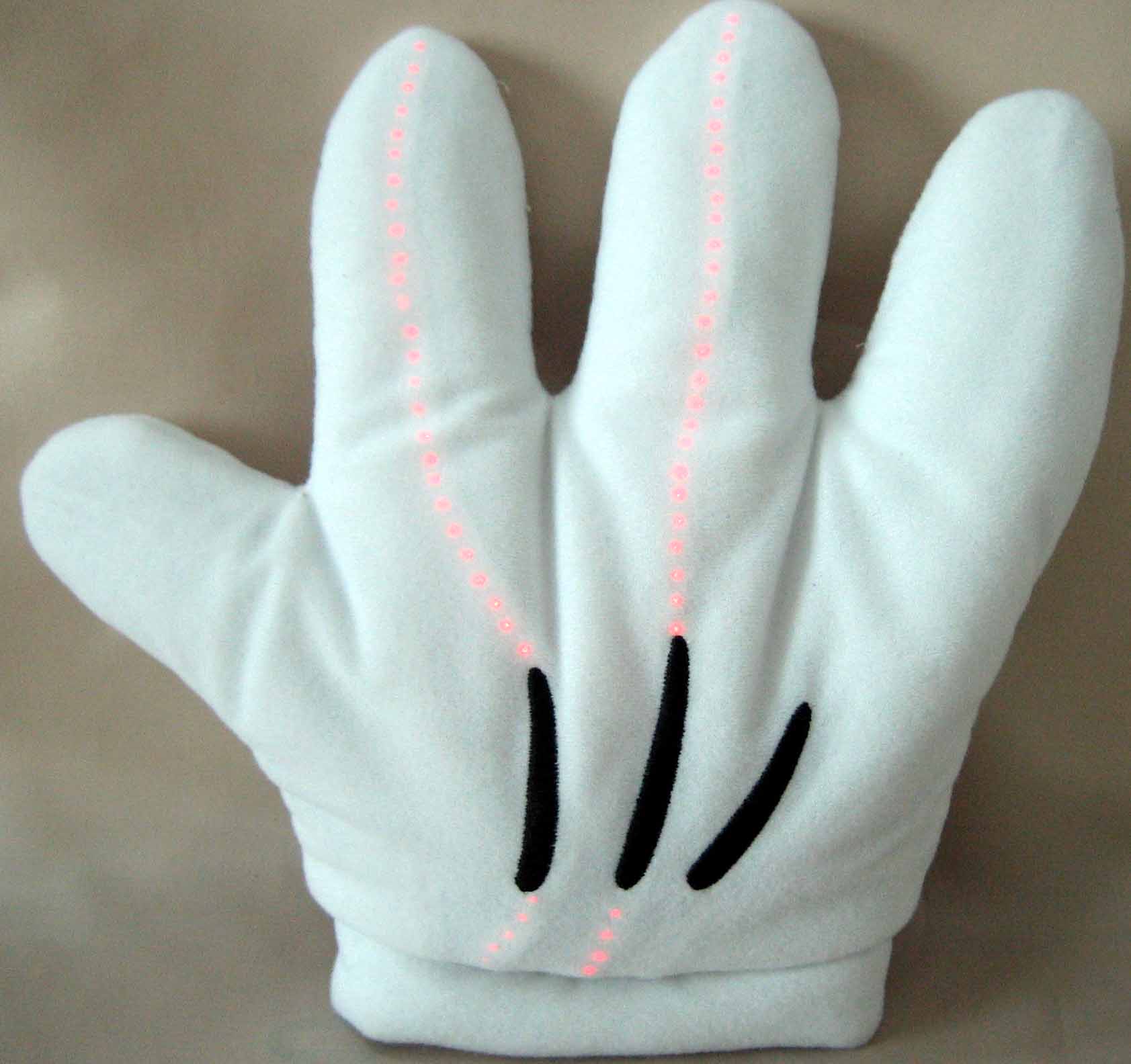

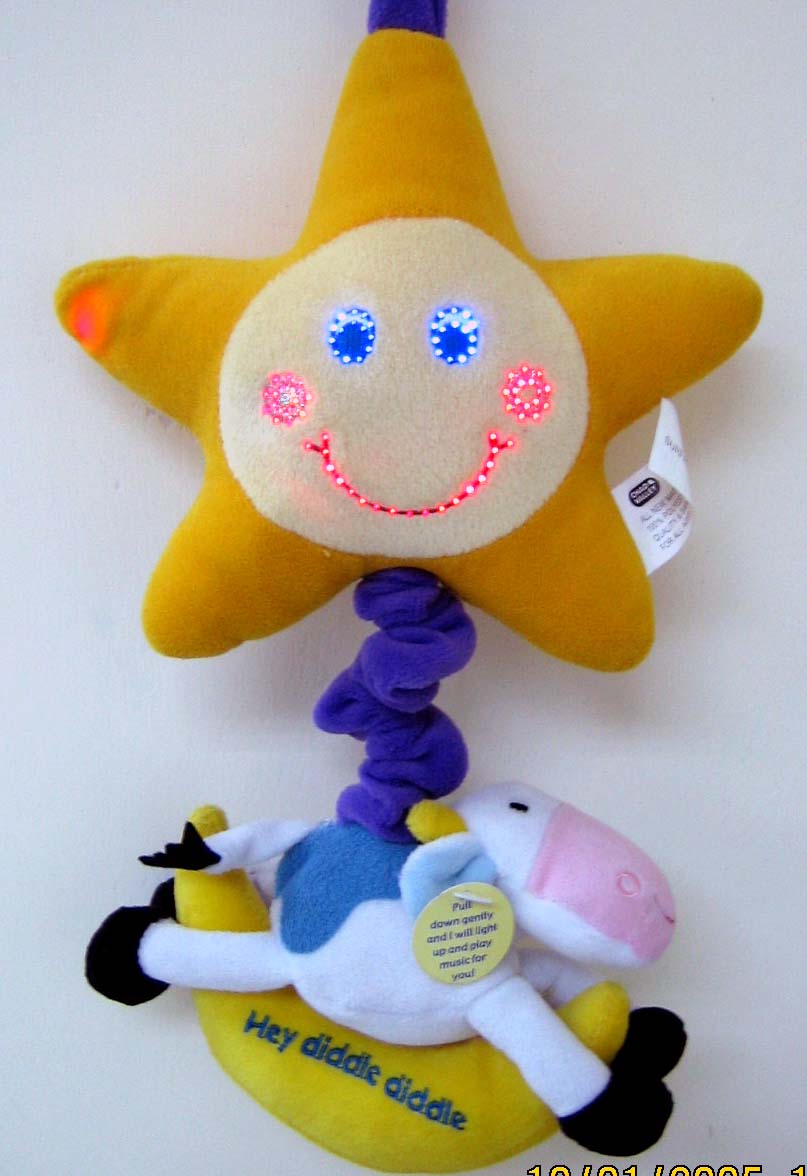

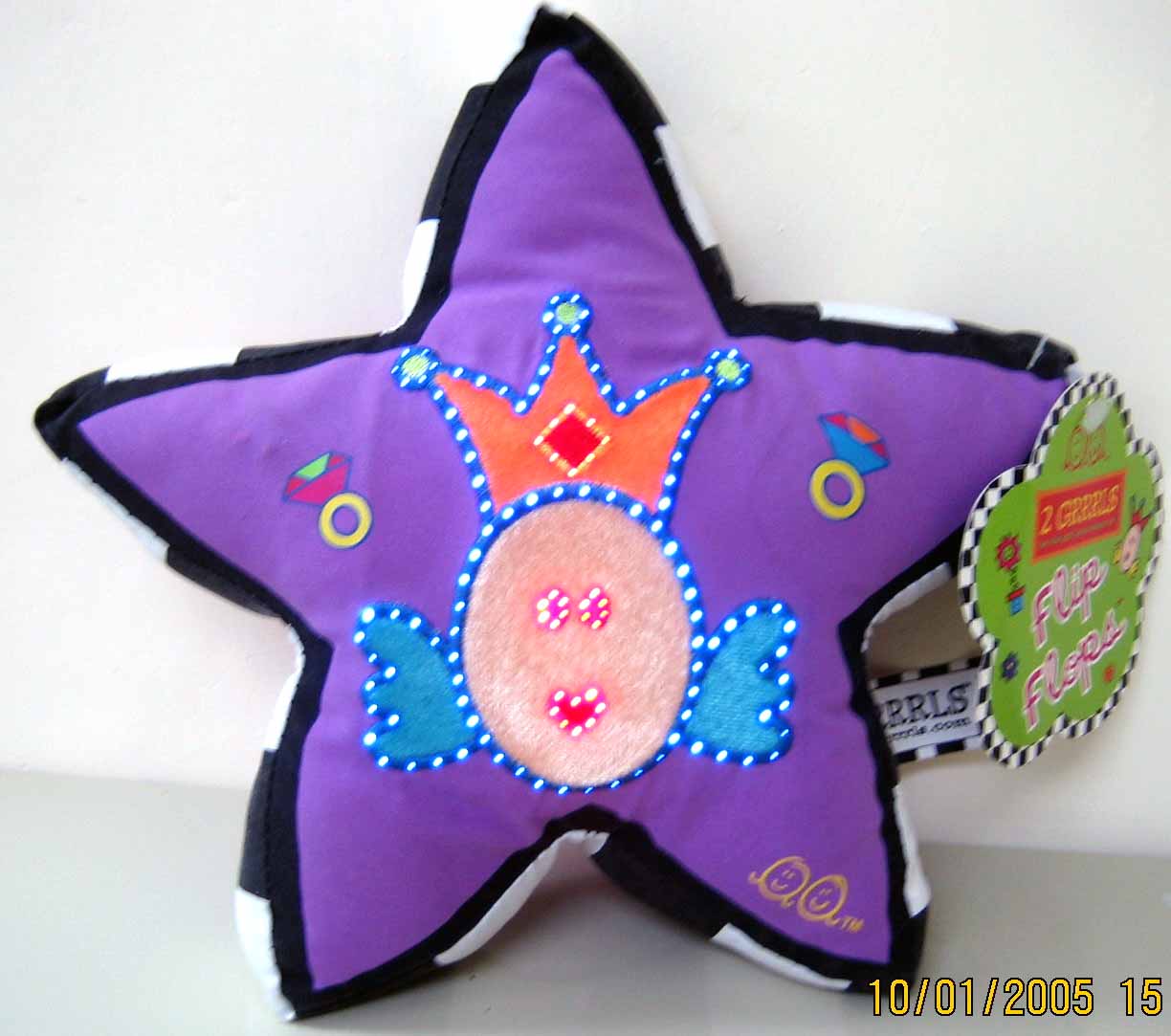

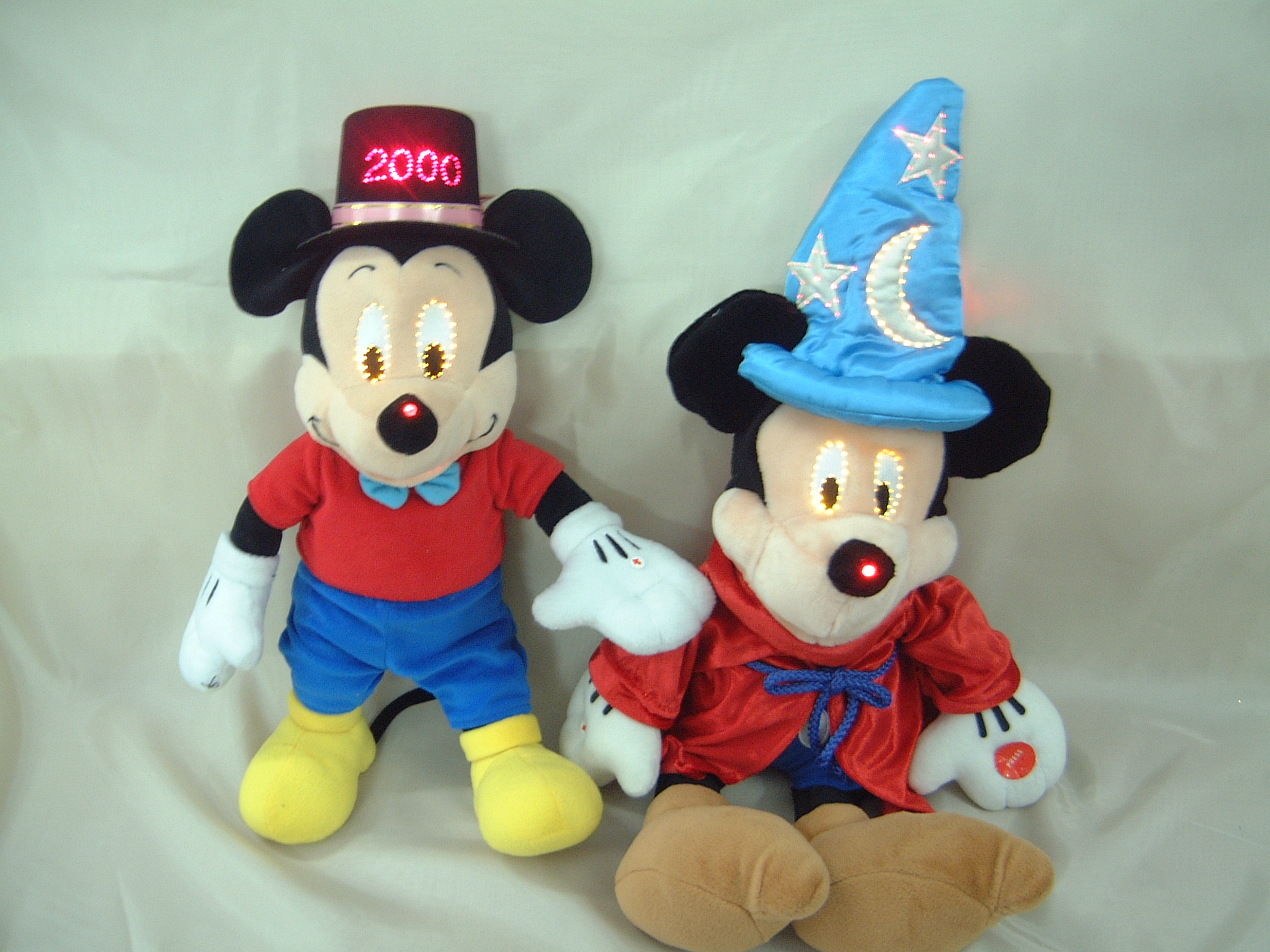

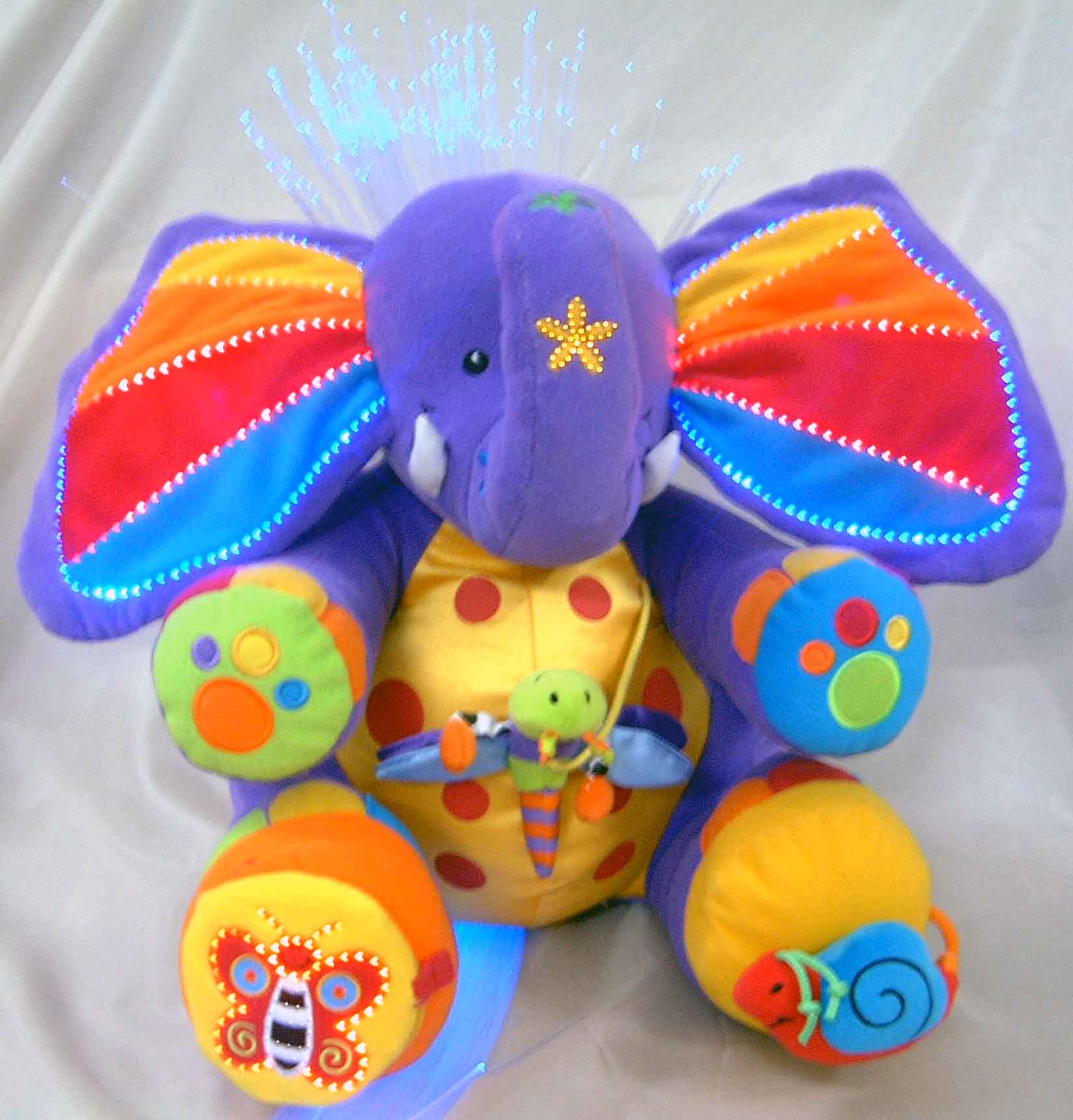

                                     Licenser product  "Walt Disney " toy with Fiber optics light"

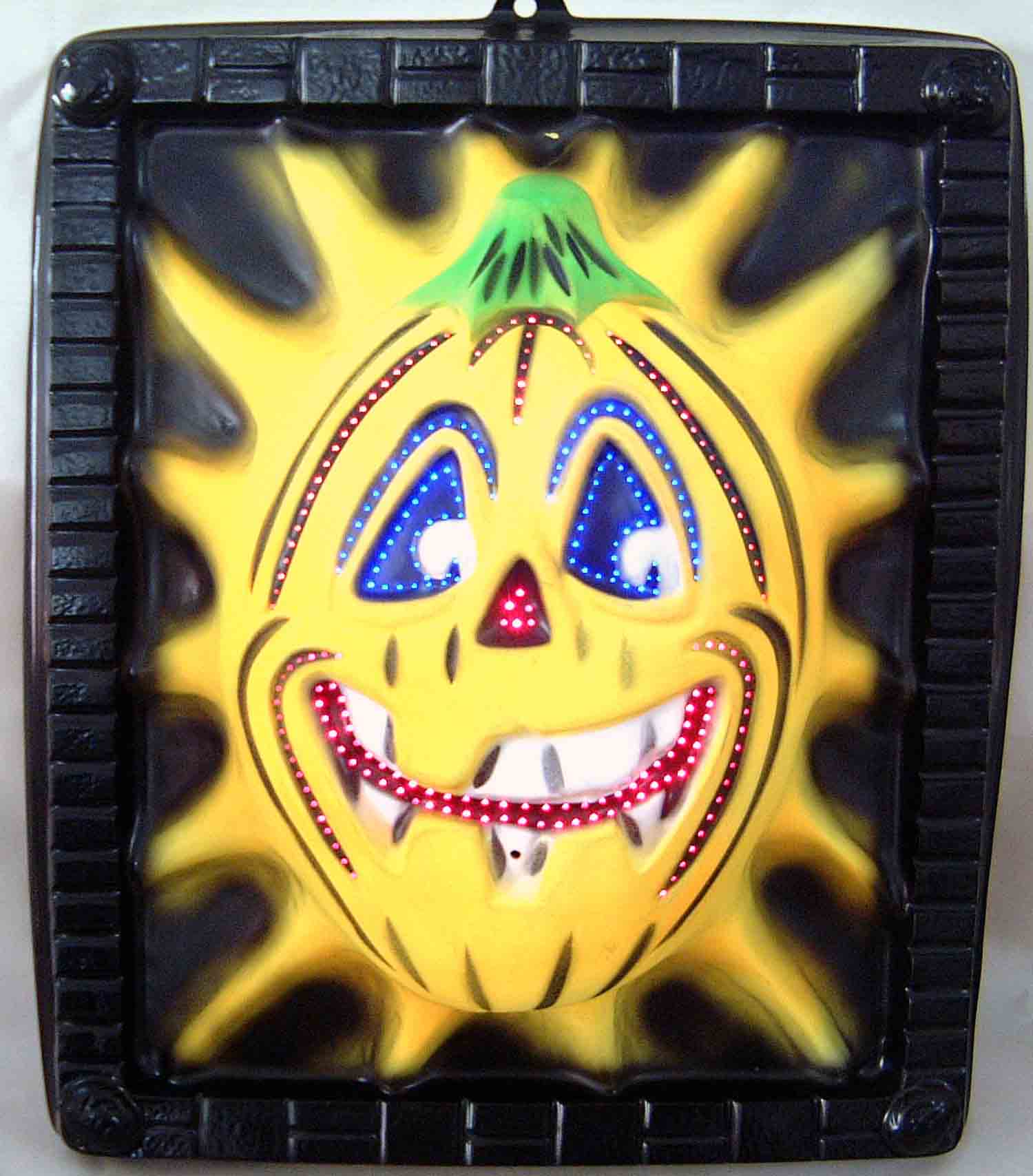

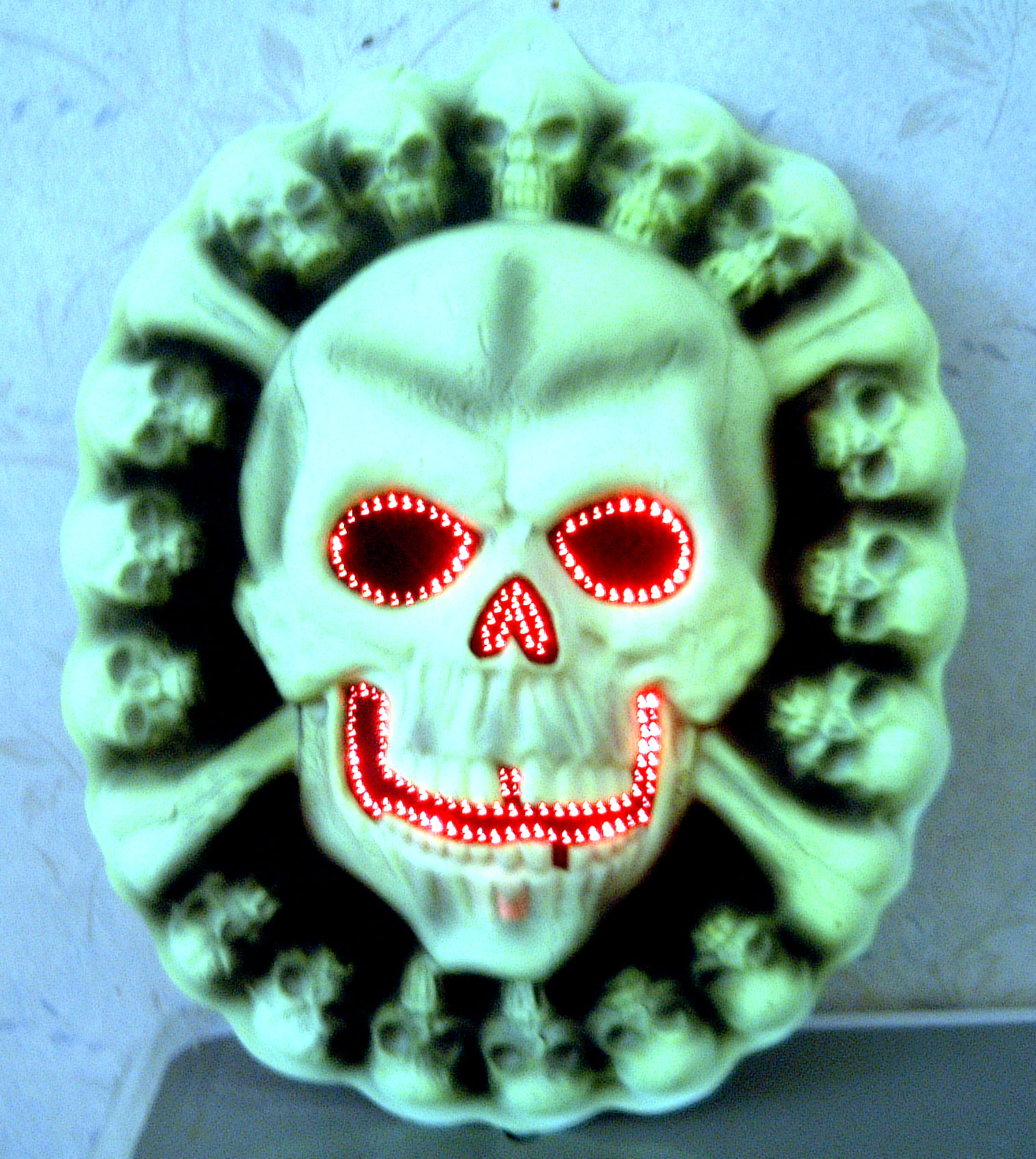

                   "Skeletal Head"with fiber optics light accompany with Ghost sound



















  想耍求婚, 不用開口,有它代勞,盡在不言中

     多種音樂, 任君選擇,多類燈飾, 燦爛奪目.

      It can help you.Multiple lighting and multiple melody

     module,beautiful & colorful,for customer choice.

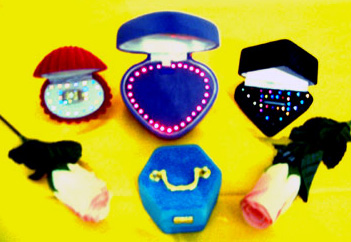

                                                   首篩介指盒附光纖閃燈連美妙音樂

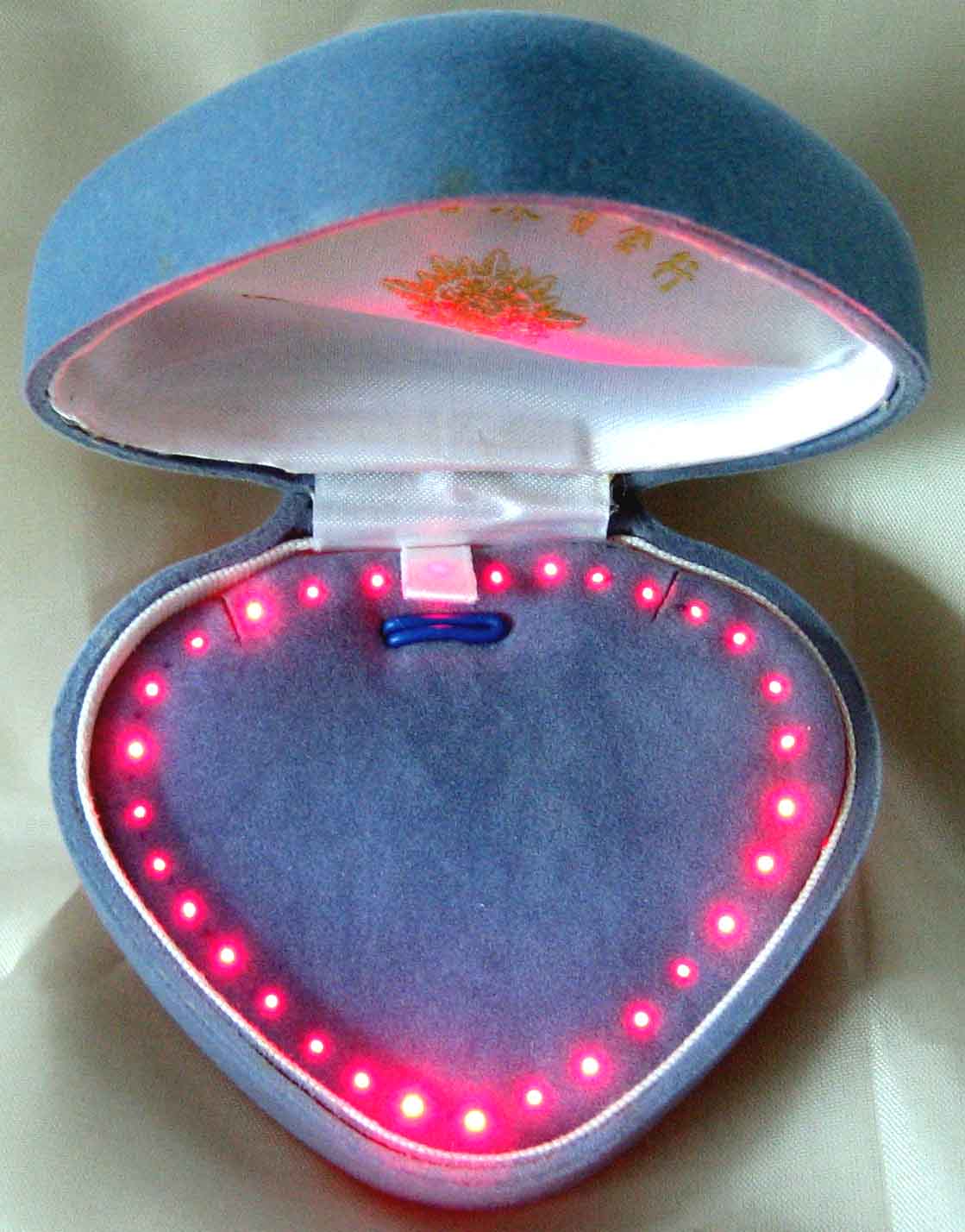

                                                                Jewellery ring box accompany by melody

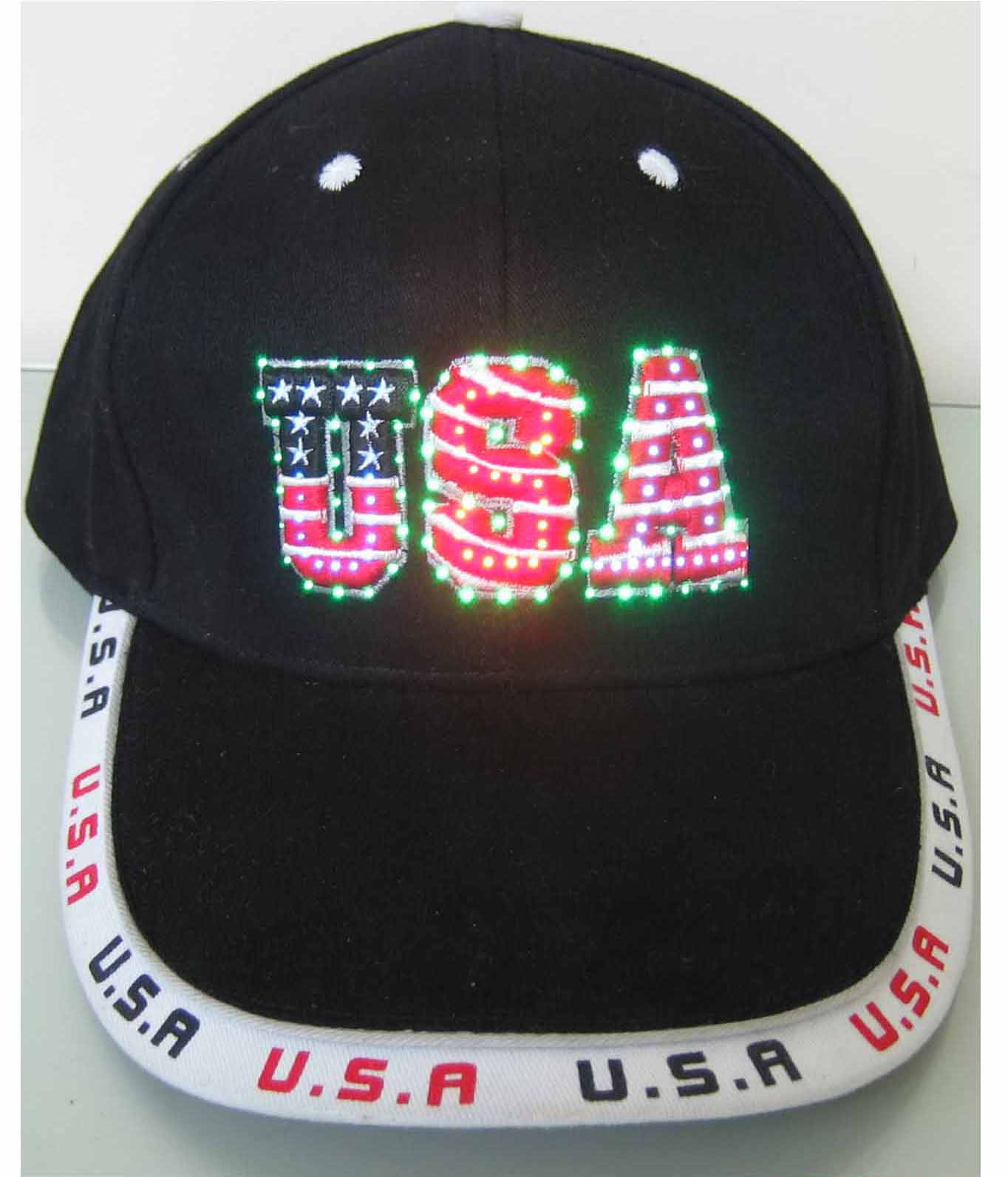

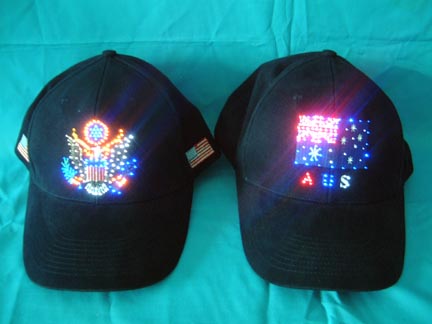

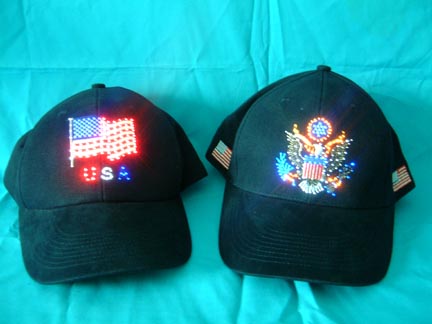

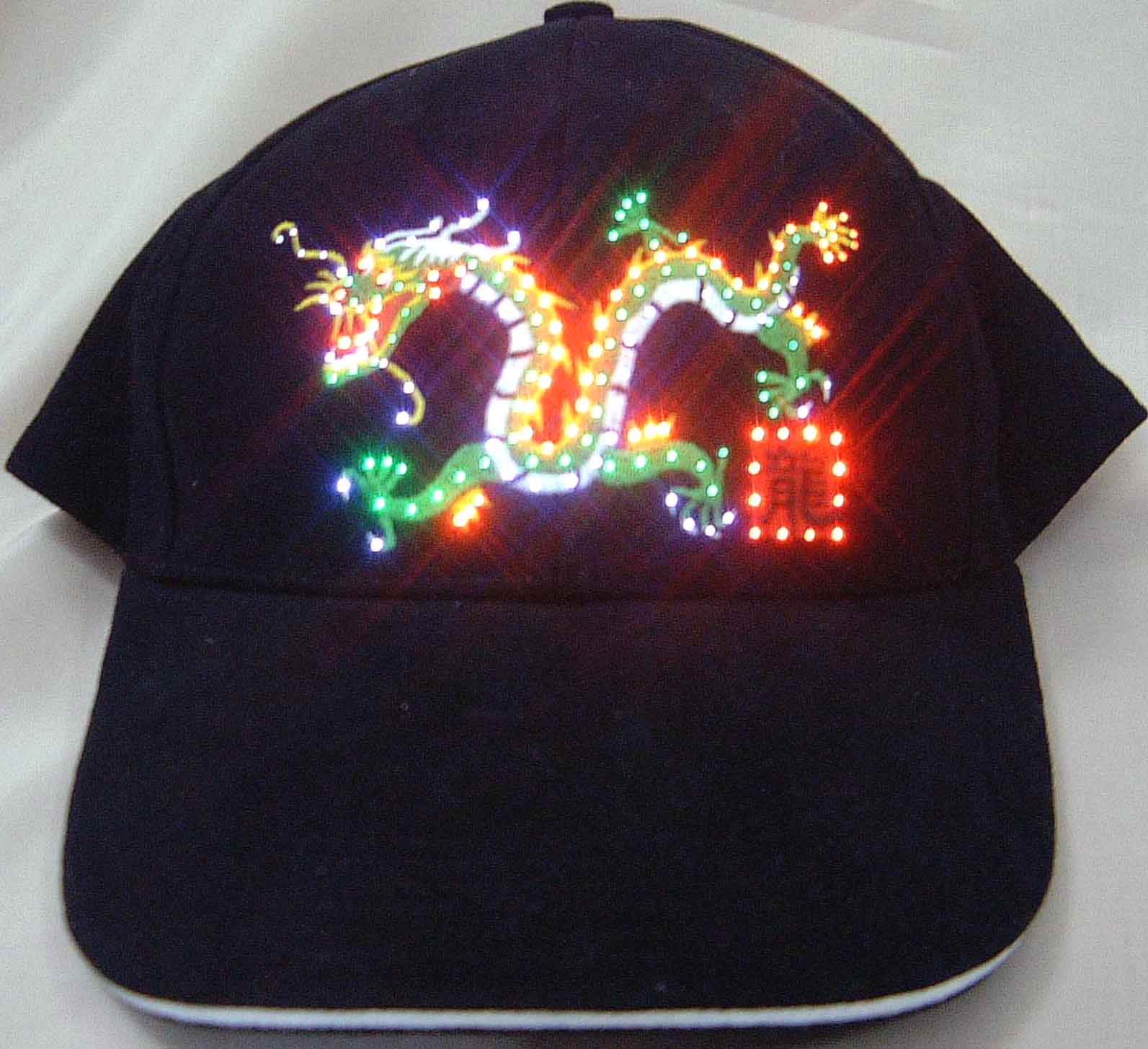

                     CUSTOMER LOGO  FIBER OPTICS LIGHT BASE BALL CAP

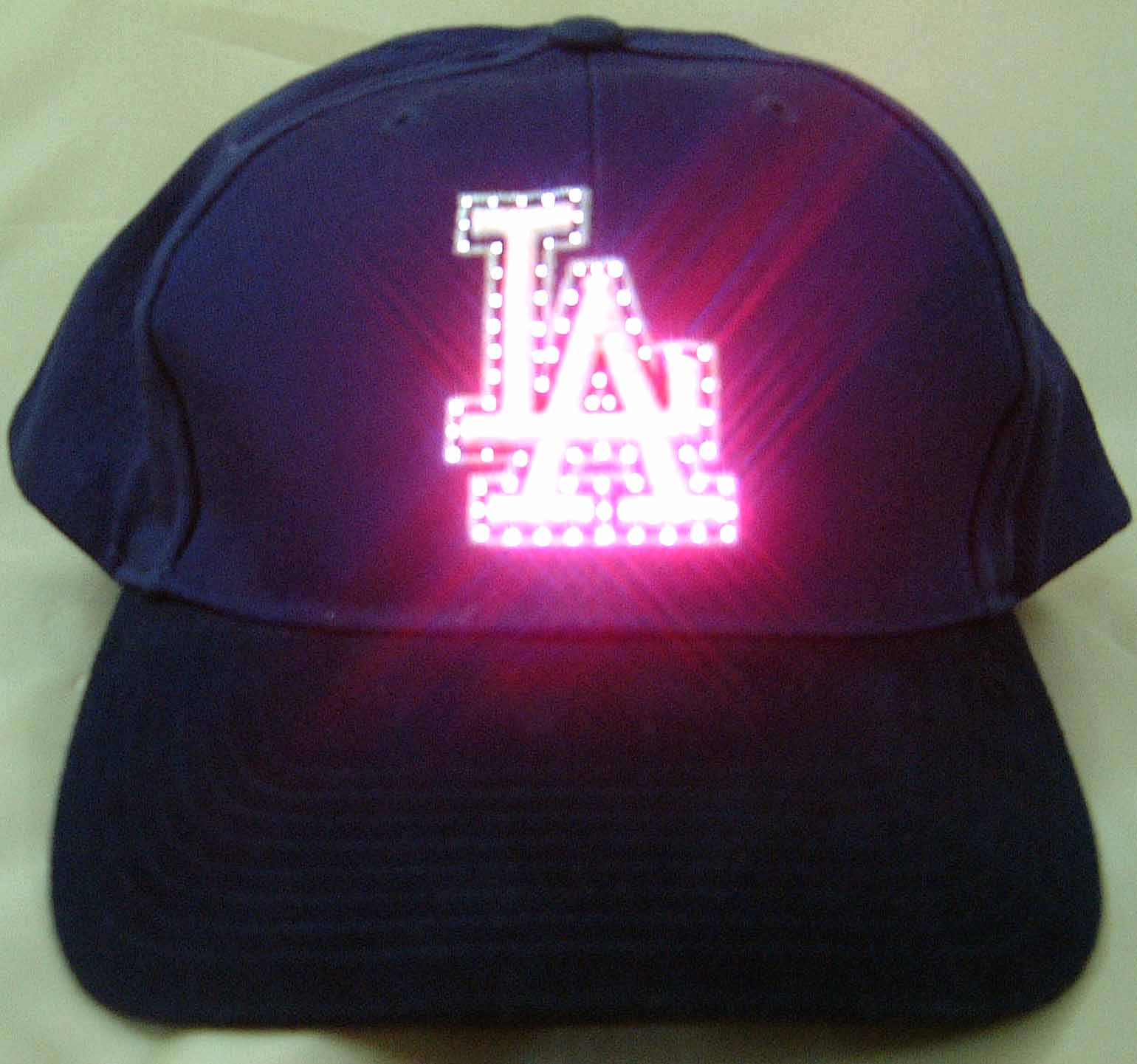

       Customer logo fiber optics light baseball cap                    America flag light wear cap with fiber optics light





  EVA Material products with Fiber optics light                       Christmas tree skirt  plush cloth binding  with Fiber optics  light

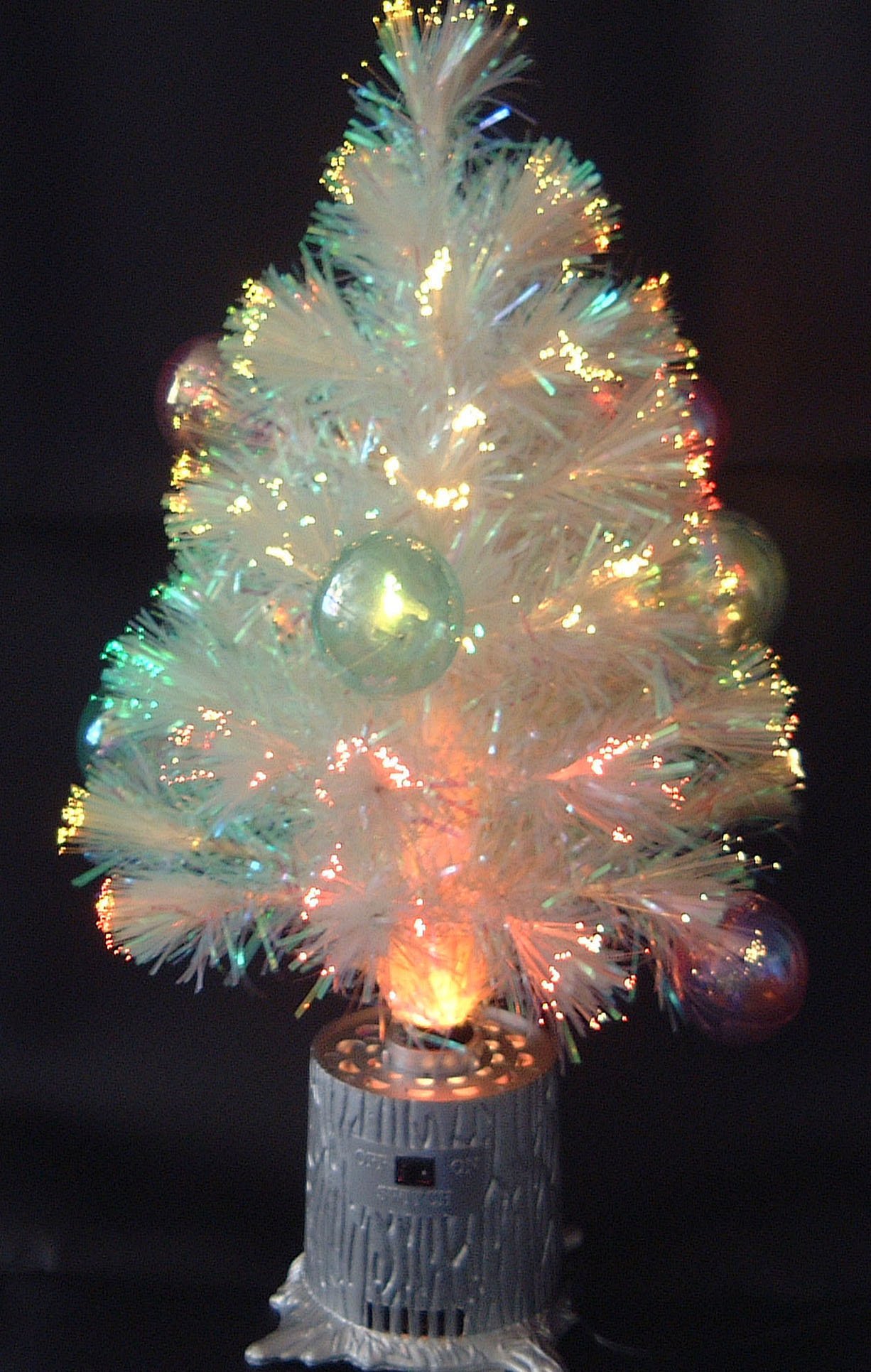

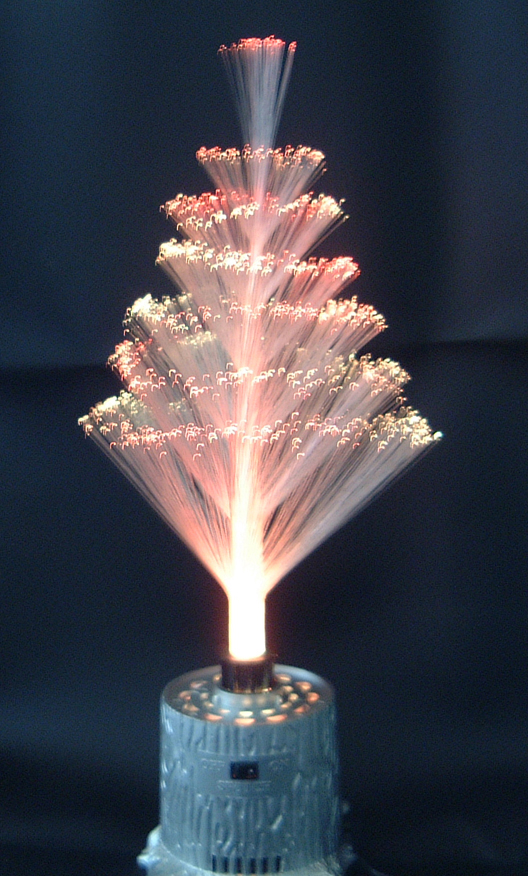

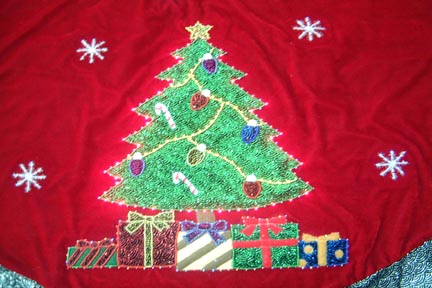

                                                                   Fiber optics Light Christmas Tree

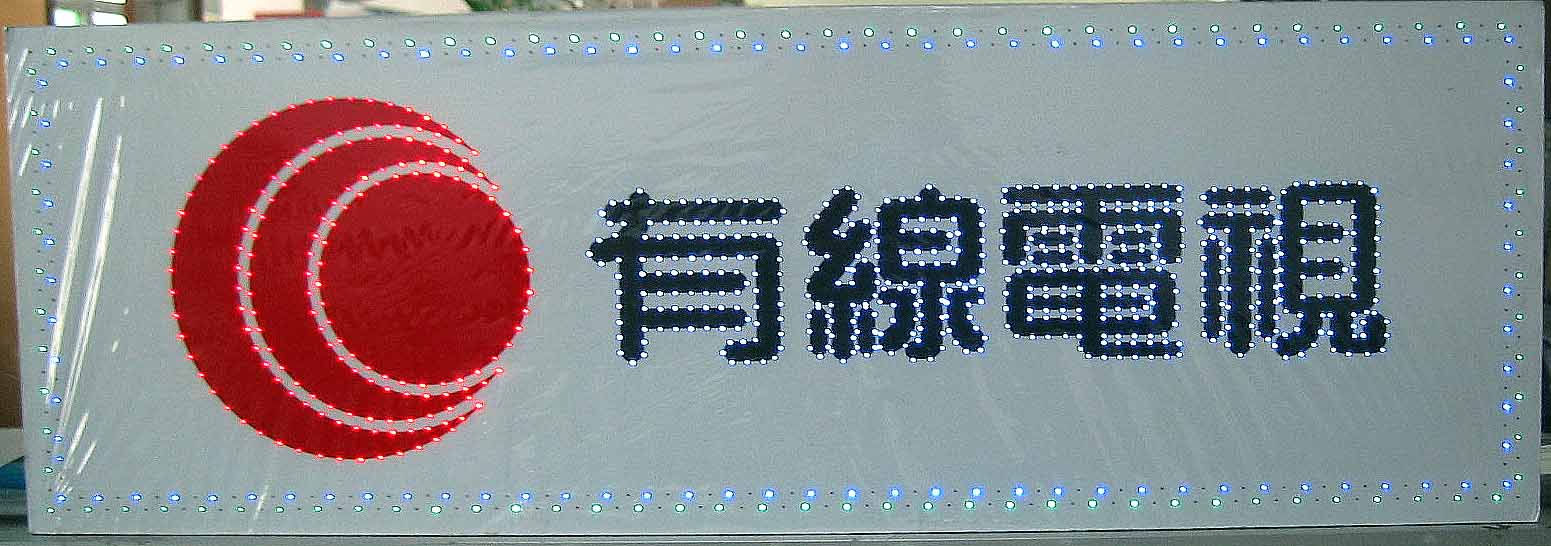

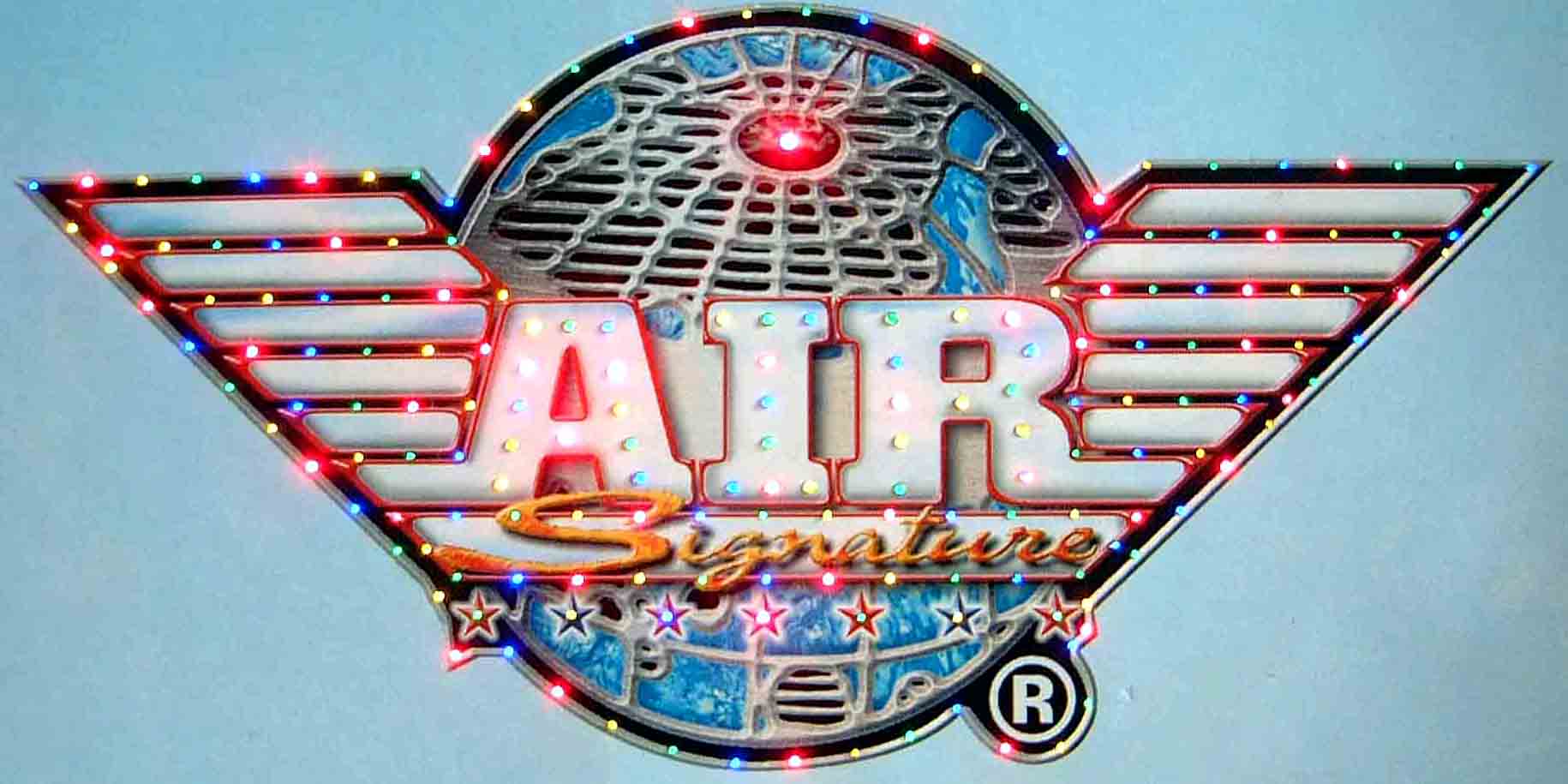

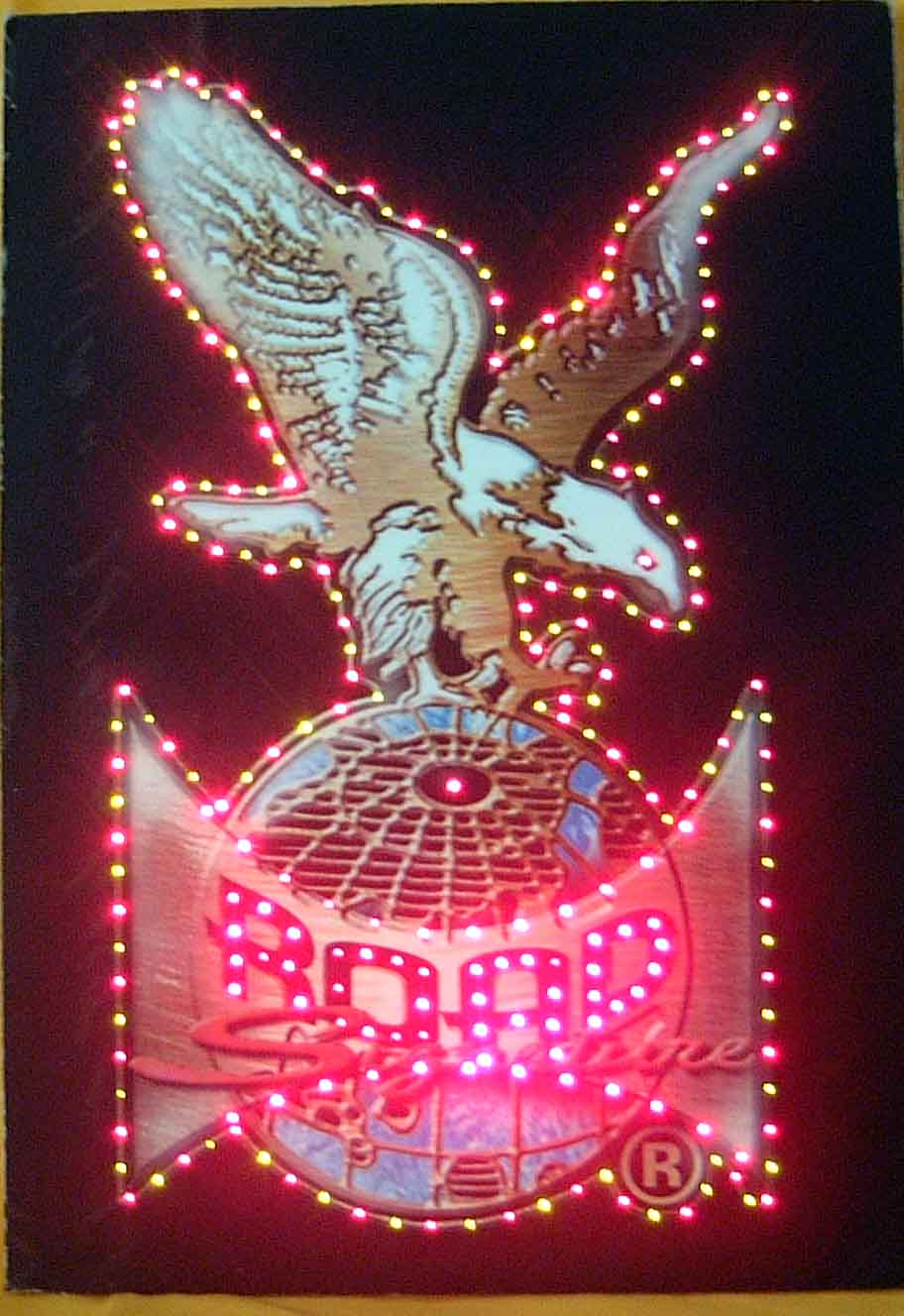

          Customer Logo display with fiber optics light                         ( cab & container) with fiber optics light )

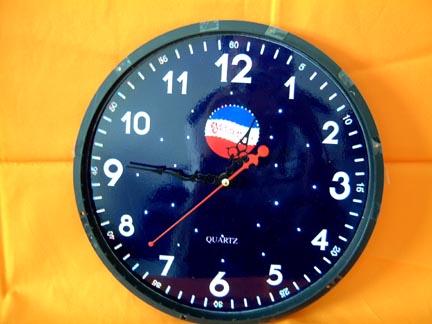

  FIBER OPTICS LIGHT COLA  CLOCK  ADVERTISING DISPLAY        Customer products (Plush Slipper)                   Customer  Logo display with fiber optics light









                                                      "

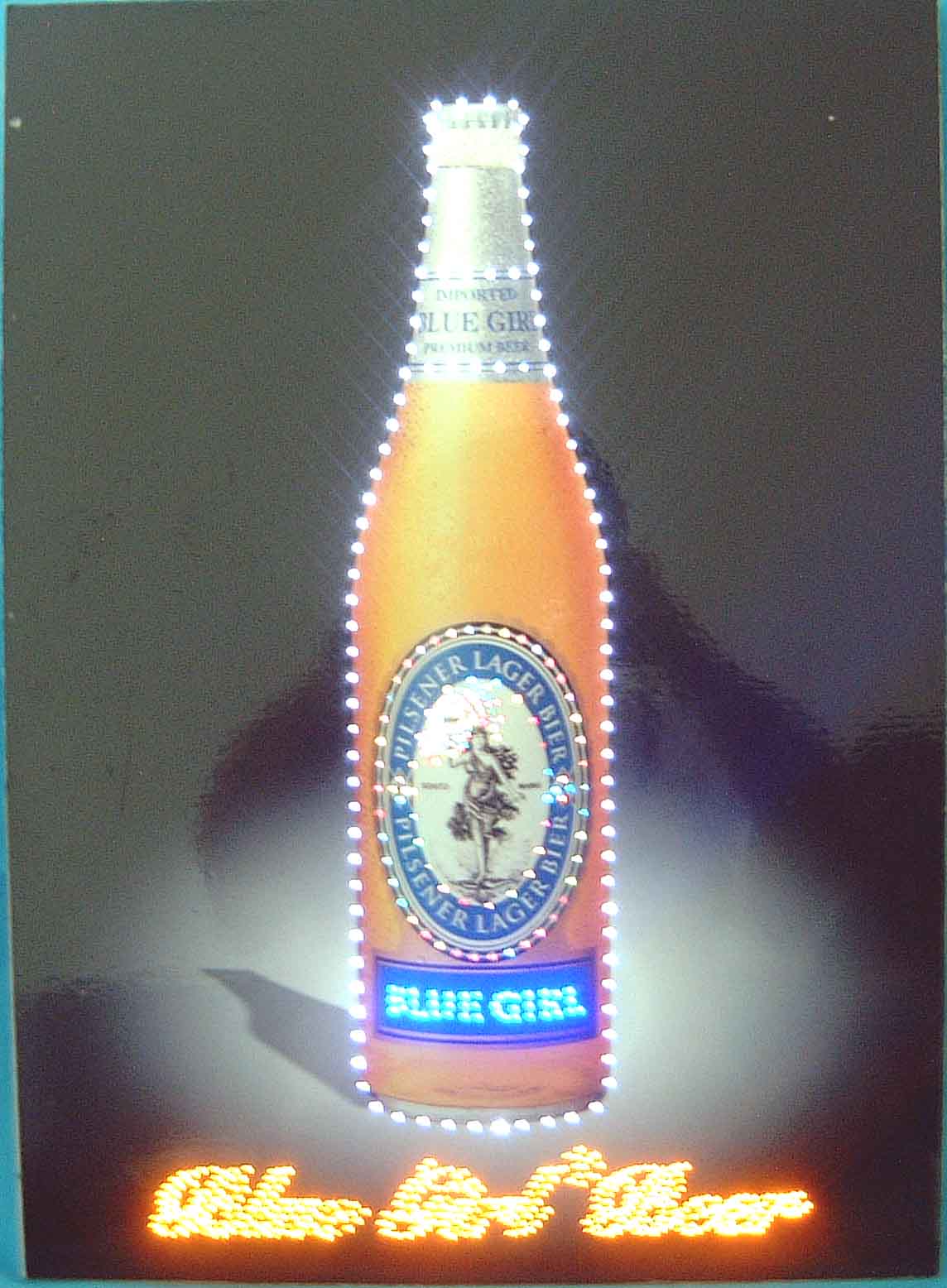

       Children luggage with fiber optics light        BLUE GIRL BEER" ADVERTISING DISPLAY     Dog leash with fiber optics light

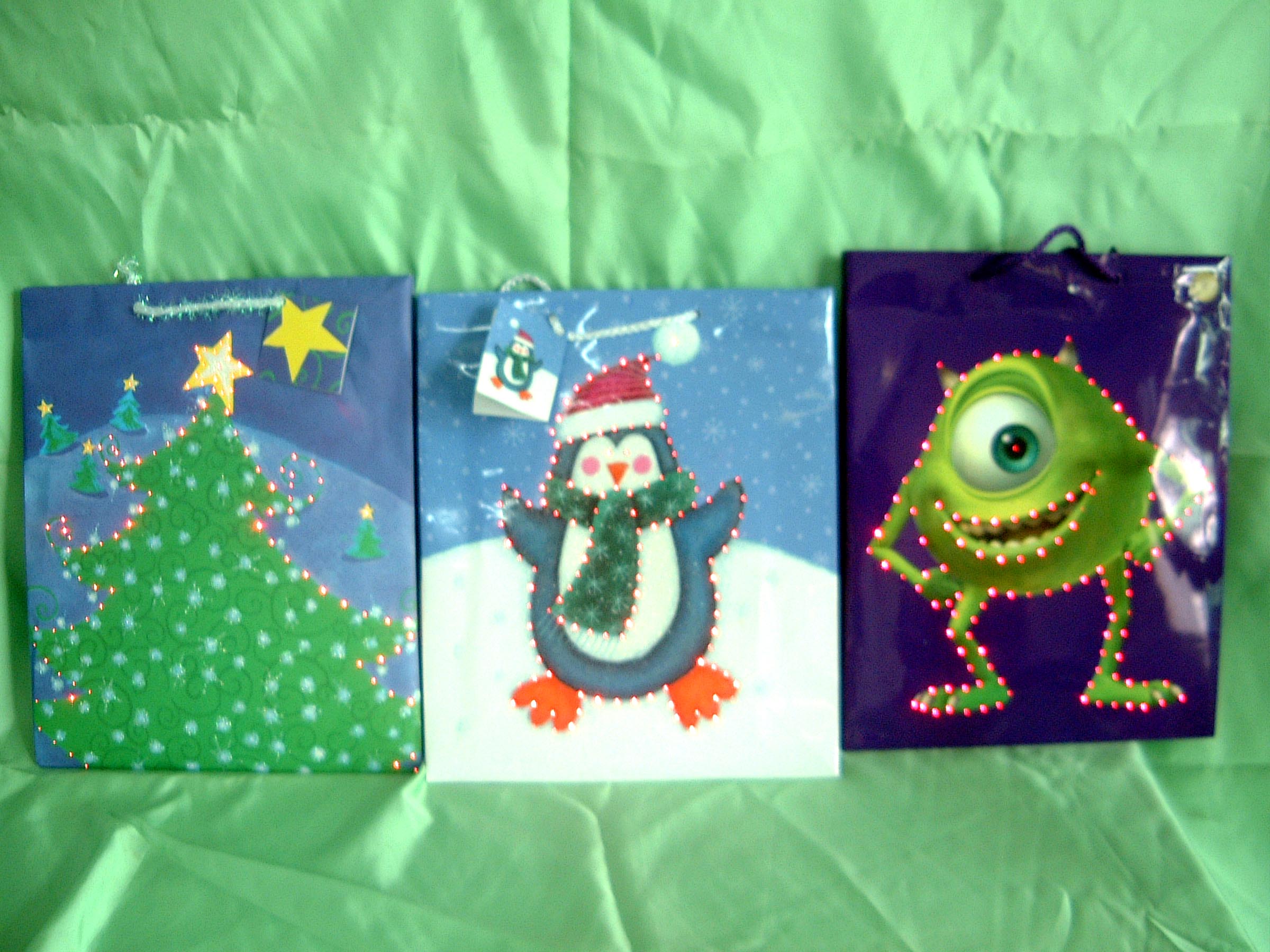

 Fiber optics light purchasing paper bag accompany by melodies   FIBER OPTICS LIGHT GIFT BOX ACCOMPANY BY MELODY WITH LIGHT SENSOR







 本公司有各地出產之光纖絲,全導光纖飛利蒲金鹵燈光源器等,供應給各客戶訂購, 歡迎各廠家來電洽商批發. 同時本公司深圳廠房

也代客設計,來料加工,生產 各种光偎q子產品,光纖絲等.價格公道質量高,歡迎各大小廠家來電洽B.

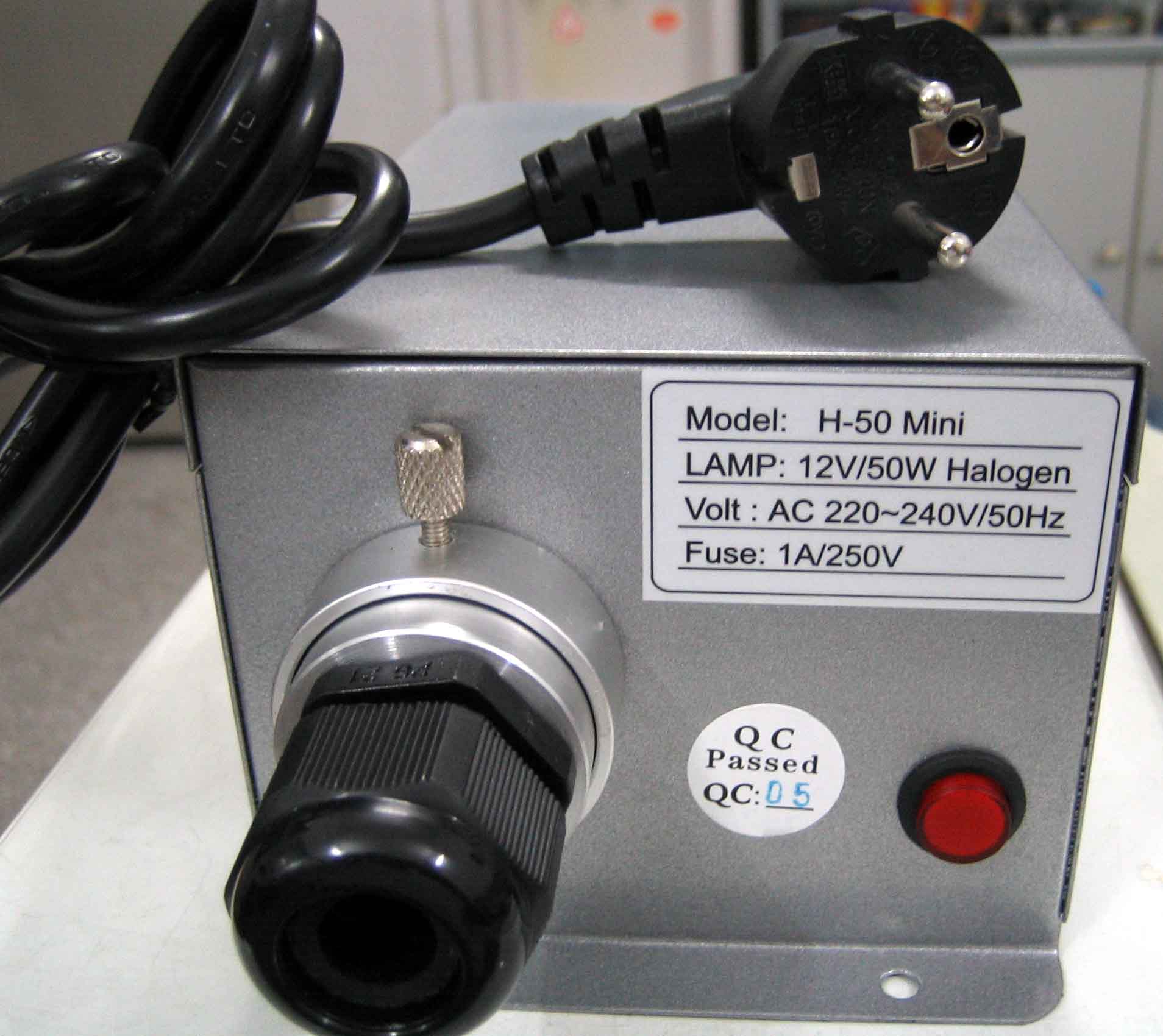

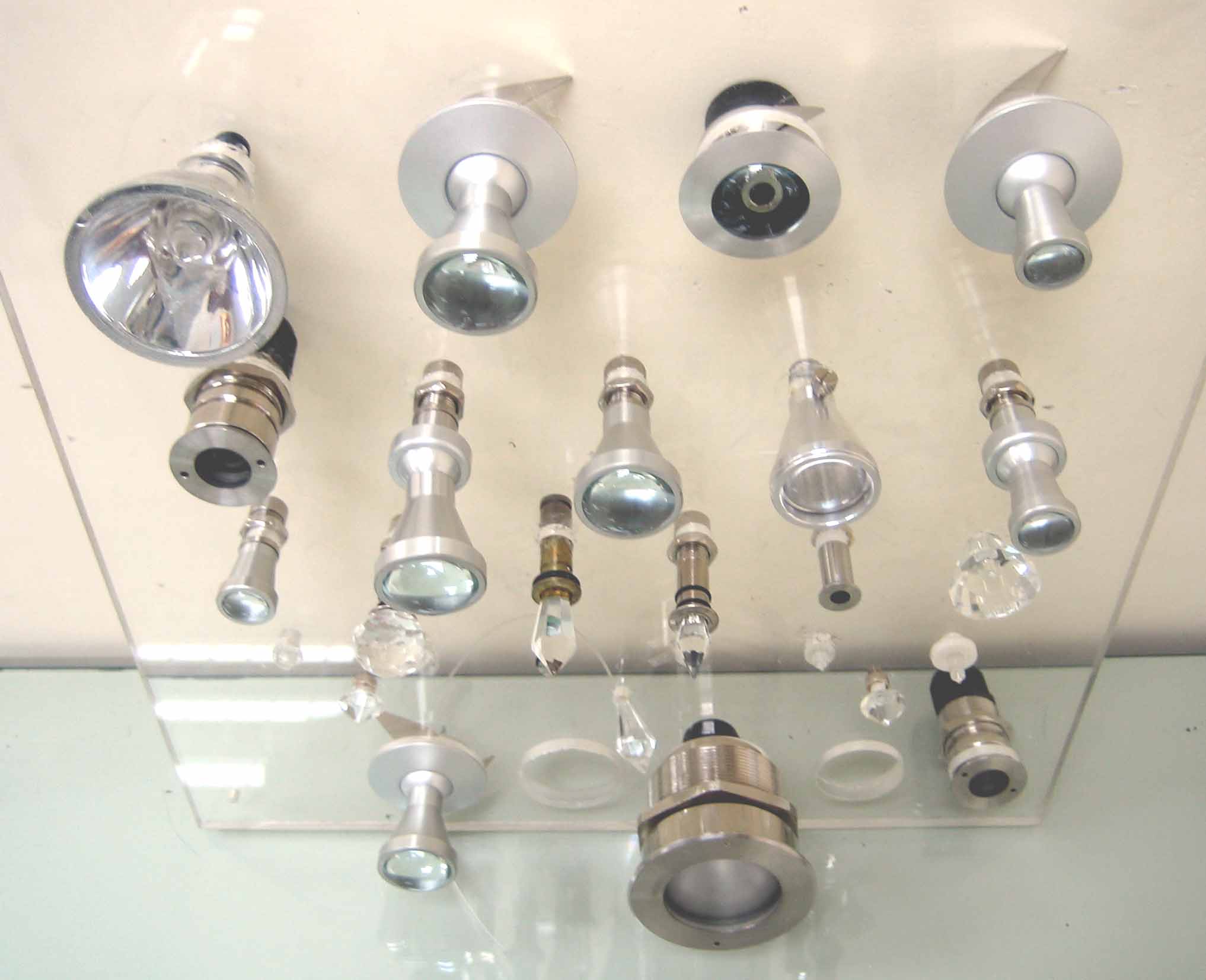

飛利蒲鹵素燈光源器系列:



規格:---- 220V-240/V 50/60HZ  由 35Watt--250Watt.

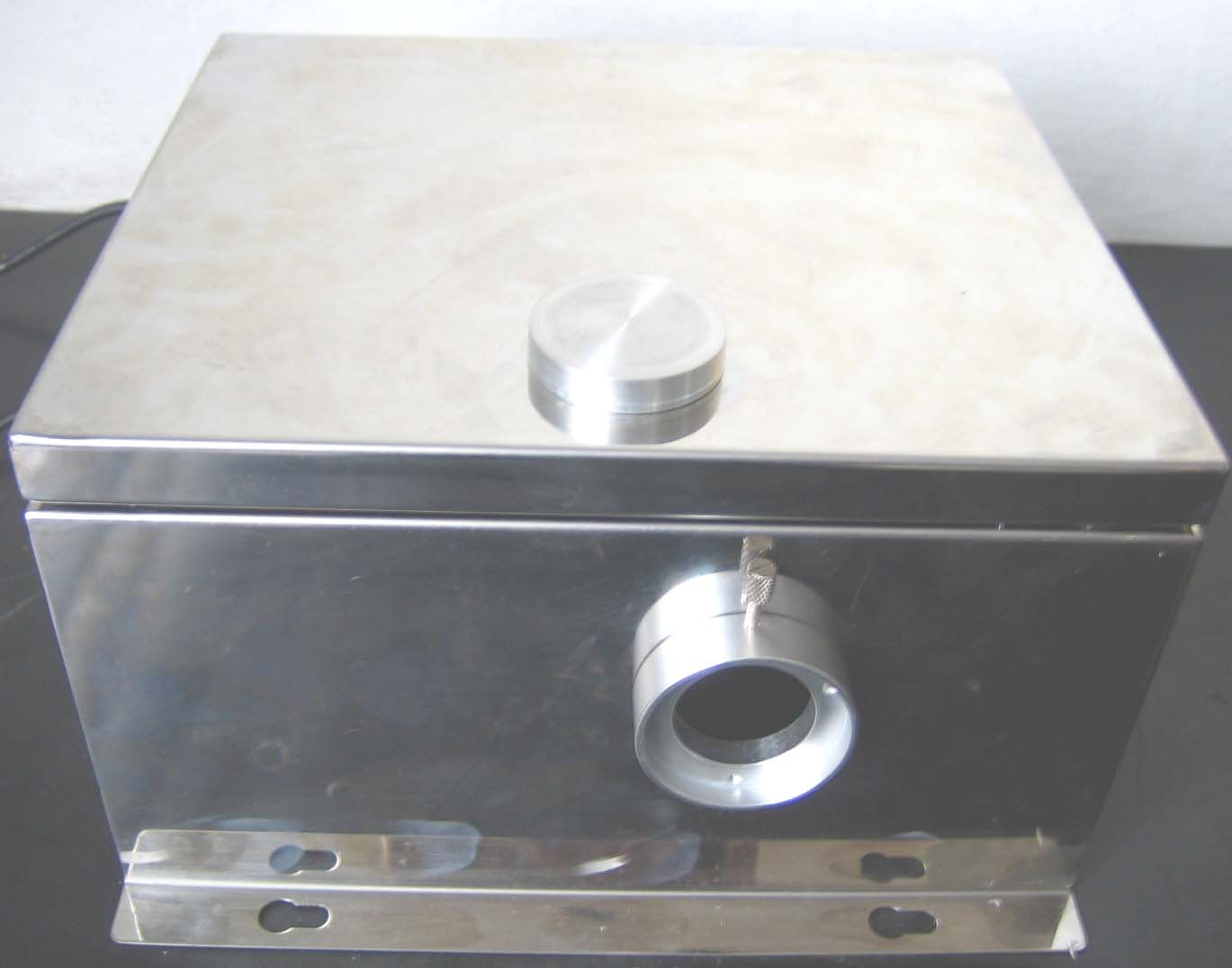

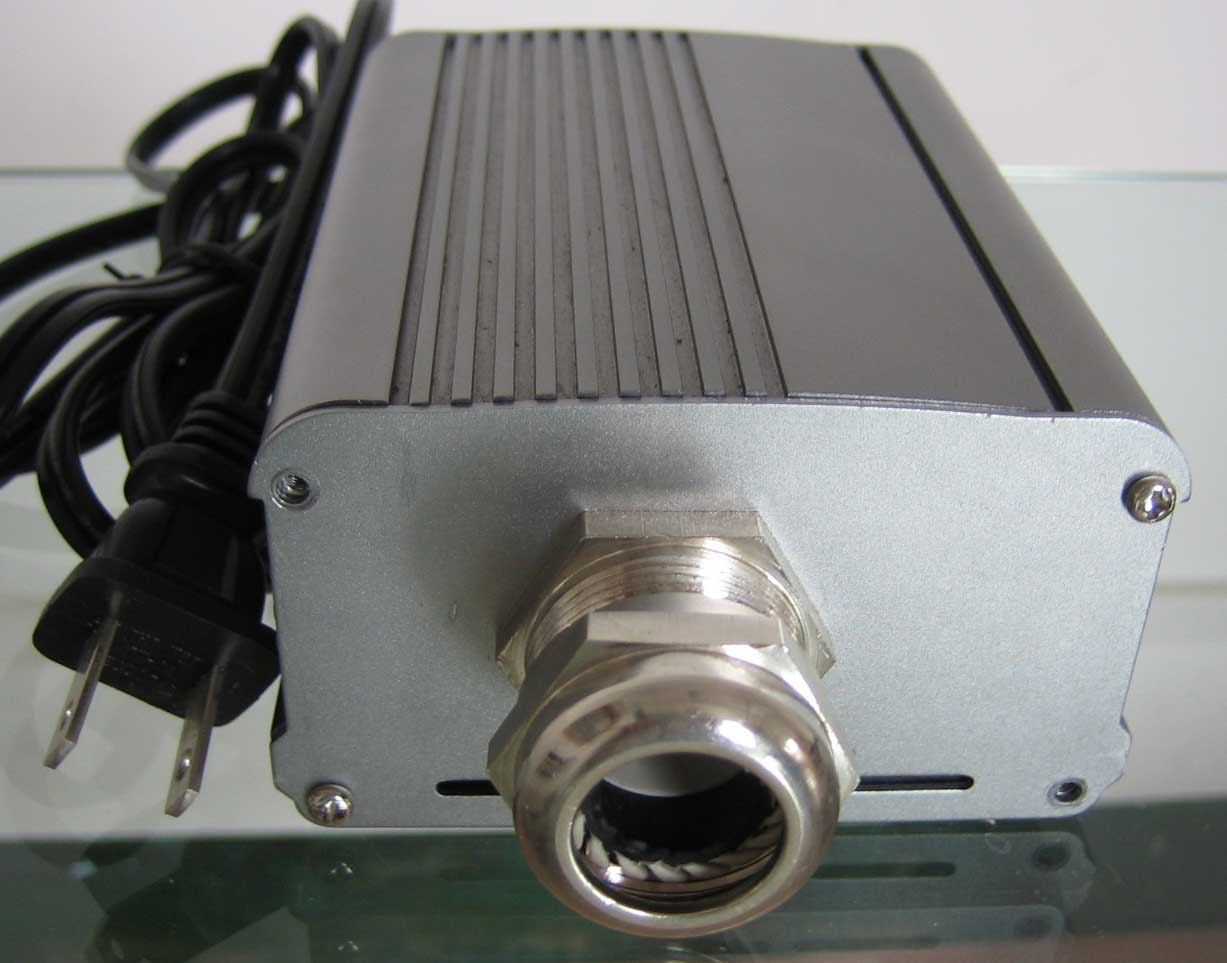

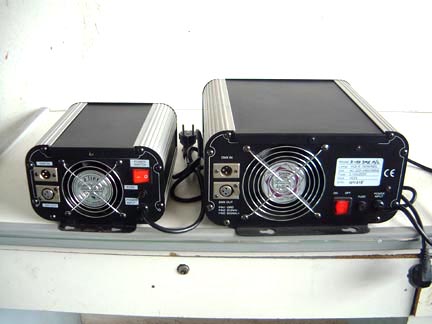

“HALOGEN” LIGHT SOURCE ENGINE SPECIFICATION DIAGRAM:--

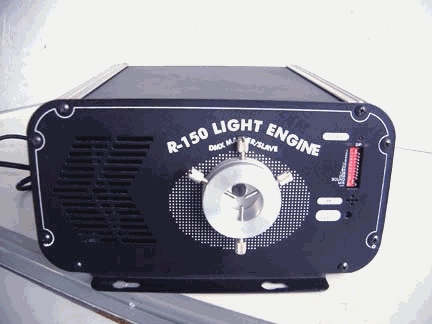

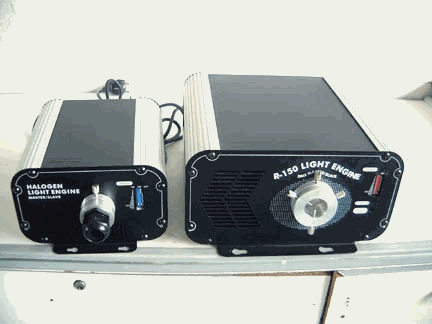

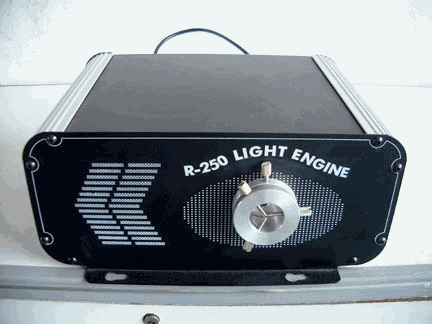

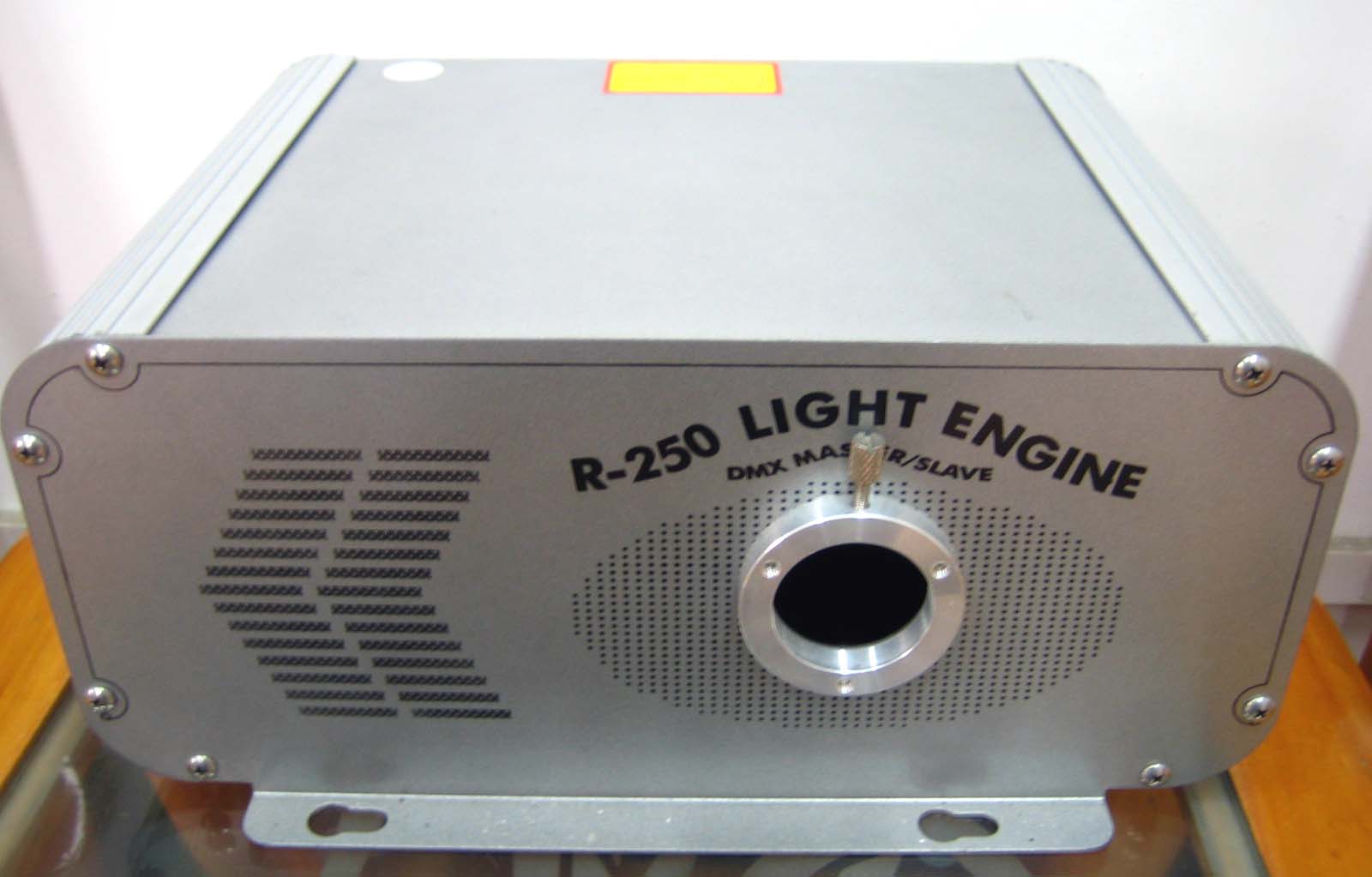

             220-240V/50Hz R-150 WATT LIGHT ENGINE     220-240V/50Hz R-250 WATT LIGHT ENGINE



      220-240V/50Hz LAMP- 12V/ 100 WATT LIGHT ENGINE                        220-240V/50Hz LAMP-12V/ 50 WATT LIGHT ENGINE







FIBER OPTICS THREAD SPECIFICATION DIAGRAM:           光纖絲系列規格表

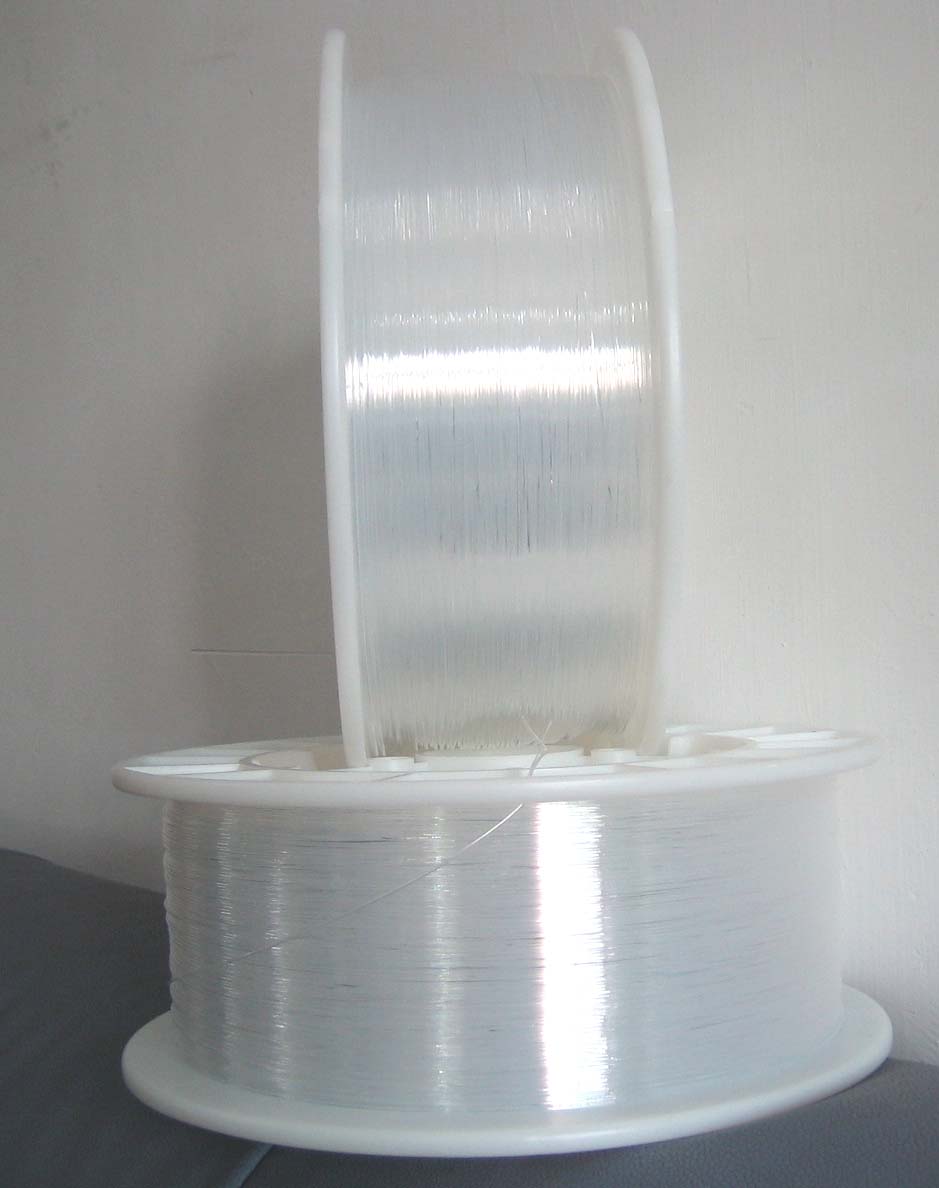

日本製造光纖絲

單價/KG

台 灣 光 纖 絲

單價/KG







      0.3mm--0.75m(100kgs)up          HKD$1,550.00/Roll           0.18mm                (100kgs up)         HKD$170.00/kg
     1.0mm--3.0mm(100kgs)up          HKD$1,650.00/Roll           0.25mm--0.75mm(100kgs)up         HKD$118.00/kg
                         1.0mm--3.0mm    (100kgs)up           HKD$130.00/kg

S-Type:-為端點發光之光纖 ,其導光亮度極佳且距離長,耐候性,可塑性佳,可運用於各類閃光產品,玩具,廣告燈箱照明,感測器等.

種類( Type )

S--Type

材質        ( Material )

PS.   PMMA

光纖直徑   ( Diameter )

0.18 , 0.25 , 0.3 , 0.4 , 0.5 ,0.6, 0.75 , 1.0 , 1.5 , 2.0 , 2.5 , 3.0  mm

傳導方式  ( Structure )

Step index type

適用( Temperature Range )

- 40~70 C

入射角範圍 ( Acceptance Angle )

50~55

損光率dB/m at 650nm ( Attenuation )

<0.3dB/m>

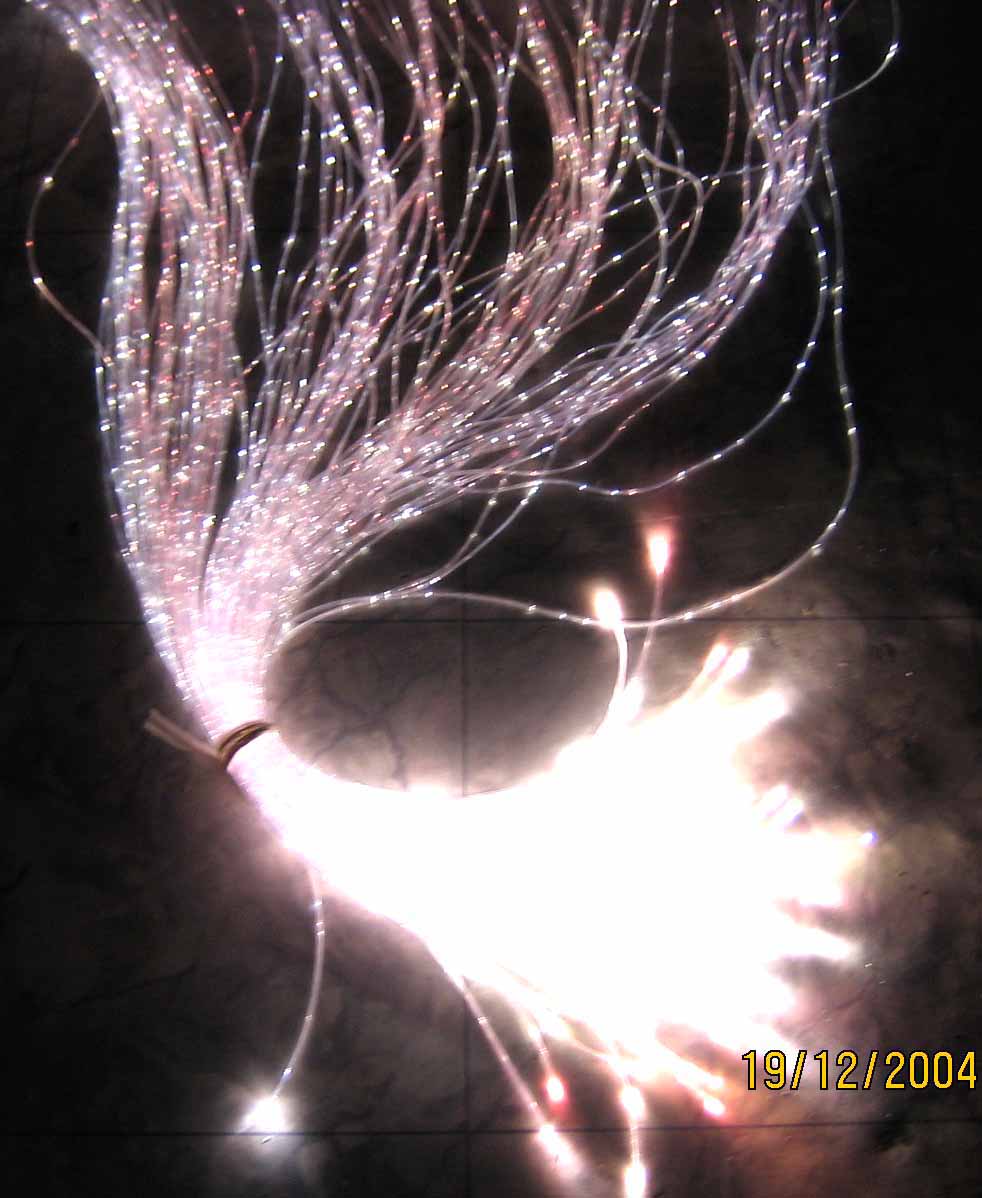

A. End Light Optical Fiber (Straight Thread)  光纖(直絲)    Made by Taiwan            Minimum order : 100kg

Type

    Diameter (mm)

Length

 Weigh

Unit Price

OLS18

¢ 0.18

1.5m / 2.5m

1kg

        HKD150.00

OLS25

¢ 0.25

      1.5m / 2.5m

1kg

HKD110.00

OLS30

¢ 0.30

      1.5m / 2.5m

1kg

HKD110.00

OLS50

¢ 0.50

      1.5m / 2.5m

1kg

HKD110.00

OLS75

¢ 0.75

      1.5m / 2.5m

1kg

HKD110.00

 OLS100

¢ 1.00

      1.5m / 2.5m

1kg

HKD128.00

 OLS150

¢ 1.50

      1.5m / 2.5m

1kg

HKD128.00

 OLS200

¢ 2.00

      1.5m / 2.5m

1kg

HKD128.00

 OLS300

¢ 3.00

      1.5m / 2.5m

1kg

HKD128.00

B. Polymer Optical Fiber ( Spool Thread) 光纖(卷絲)     Made by Taiwan             Minimum order : 100 Kg

Type

 Diameter Diameter (mm)

Length/Spool

Unit Price

OLS18

¢ 0.18

16500m / kg

 HKD150.00

OLS25

¢ 0.25

 12500m / kg

 HKD110.00

OLS30

¢ 0.30

  8500m / kg

 HKD110.00

OLS50

¢ 0.50

   4500m / kg

 HKD110.00

OLS75

¢ 0.75

   2500m / kg

 HKD110.00

 OLS100

¢ 1.00

   1350m / kg

 HKD128.00

 OLS150

¢ 1.50

   650m / kg

 HKD128.00

 OLS200

¢ 2.00

   300m / kg

 HKD128.00

 OLS300

¢ 3.00

   120m / kg

 HKD128.00




C. PMMA. Light guide optical fiber (Straight thread) 全導光纖 () Made by Taiwan    M.O.Q : 100/m

Type

 Diameter (mm)

Length/Spool

Unit Price/m

OLS300

OLS600

¢3.0

¢  6.0

40m/kg

22m / kg

 HKD35.00/m

HKD65.00/m

OLS800

¢  8.0

17m / kg

  HKD85.00/m

OLS1000

¢ 10.0

12m / kg

   HKD100.00/m

OLS1200

¢ 12.0

 8m / kg

  HKD115.00/m

OLS1600

¢ 16.0

 5m / kg

  HKD130.00/m

OLS1800

¢ 18.0

 3.5m / kg

  HKD155.00/m

D. PMMA. Side light optical fiber (Spool thread) 全導光纖 (卷絲 Made by Taiwan            M.O.Q : 100/m

Type

    Diameter (mm)

Length/Spool

Unit Price

OLS300

OLS600

¢ 3.0

¢  6.0

40m/kg

22m / kg

  HKD35.00/m

HKD65.00/m

  OLS800

¢ 8.00

17m/kg

  HKD85.00/m

OLS1000

  ¢ 10.0

  12m /kg

     HKD100.00/m



    OLS1200

 ¢ 12.00

8m/kg

   HKD115.00/m

    OLS1600

 ¢ 16.00

5m / kg

    HKD130.00/m

      OLS1800



 ¢ 18.00

3.5m / kg

           HKD155.00/m

E. 外包黑膠皮之端點光纖 (outside jacket) ( 卷絲 )                Made by Taiwan              Minimum order  10k/m



Diameter (mm)

Length/kg

Price/meter

OLJ75

¢ 0.75

220.5m/kg

HKD3.50/m

 OLJ100

  ¢ 1.00

174.5m/kg

HKD4.00/m

OLJ150

¢ 1.50

110.5m/kg

HKD5.00/m

F. 通訊用之端點光纖 (For communication use )( 卷絲 )      Made by Taiwan                 Minimum order 10k/m

Type

                 Diameter (mm)

      Length/kg

         Price/meter

OLC50

                         ¢ 0.5                  4500/kg

         HKD0.70

OLC75

                      ¢ 0.75

     2500/kg

         HKD1.50

OLC100     ¢ 1.0       1200/kg           HKD2.50

.


                         ¢ 0.5                                             4500/kg

         HKD0.70





備註:-- 以上每1kg長度資料只是約數,因生產時, (卷絲):有總貨量約 30-40% 正負有 0.06mm之工差.

                    (直絲): 有總貨量約 30-35%,正負有 0.05mm之工差。



此外本公司承接中港倆地各電腦 I T場地內外大小廣告燈箱,招牌,天花,地板,

牆身等光纖裝修工程.

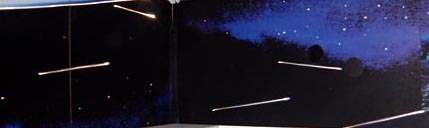

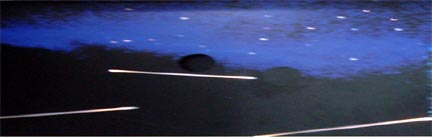

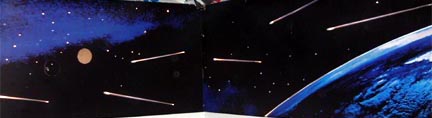

以下圖片是廣州天河區太平洋電腦 I T 城 三星諿i商,由本公司工程部用全導及端點光纖代設計好之外太空流星及星空圖.



























  本公司現推出最新高科技產品      EL泠光片(Electronic Luminescent)





















本公司最近新開發一種高科技產品. EL 冷光源片. 簡介如下.:---



EL- 技術指標

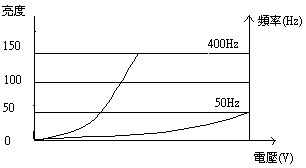

A 電壓 頻率與亮度關係

: 0.18-0.5mm

: 2Mw/c

                                                              : 0.10mA/c

    電 : 0.25nf/c㎡

    操作電壓: DC 1.5V-30V(INVERTER轉換)

   AC 30V-220V最佳工作電壓 80V-110V

   操作頻率: 50Hz-3KHz 最佳工作頻率 400Hz-800Hz

   壽 : 正常使用15000小時以上

                                                   B 壽命曲線

                                                               : 頻率、電壓與亮度成正比.

                                                              測試條件: 溫度45 相對濕度 95% 100V/AC 400Hz



顏色和亮度

(nn)

586

500

506



455

亮度(cd/m)

29

85

85

70

18

EL- 適用範圍

控制系統 液晶體(LCD)背光

薄膜鍵盤 電腦光電讀寫器 遙控器 觸摸面板等 計算機 中文傳呼機 電子字典 電子記事本

禮品玩具 電話機 音響器材 各種家電設備等

電子禮品 聖誕燈飾 安全帽 安全背心 安全腰帶 鐘錶 儀器 儀表

玩具 小夜燈 小胸牌等.

指示標誌 EL- 特性

進出口通道標誌 路標 電梯 樓層指示 緊急指示 超薄全彩色平面均勻柔和發光 高亮度 低耗電

交通指示等 防水 抗震壓 耐折彎 抗沖擊 不產生紫外線

廣告 限壽命長達5萬小時

公交車 汽車及車廂內外廣告 廣告燈箱

室內外招牌 機場廣告等.
